| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | TRB-J4A |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Series TRB is one kind of bayonet coupling connector with the advantage of high shielding performances . They are widely used in communication equipment and modern anti-jamming weapon system.

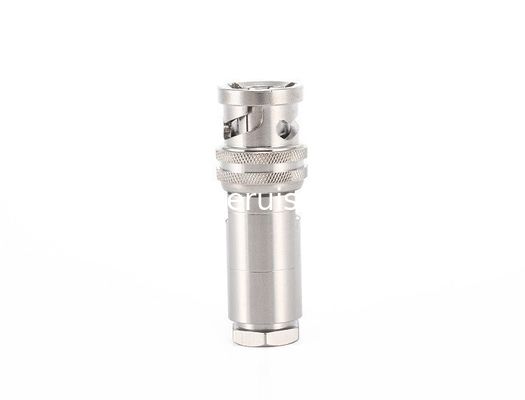

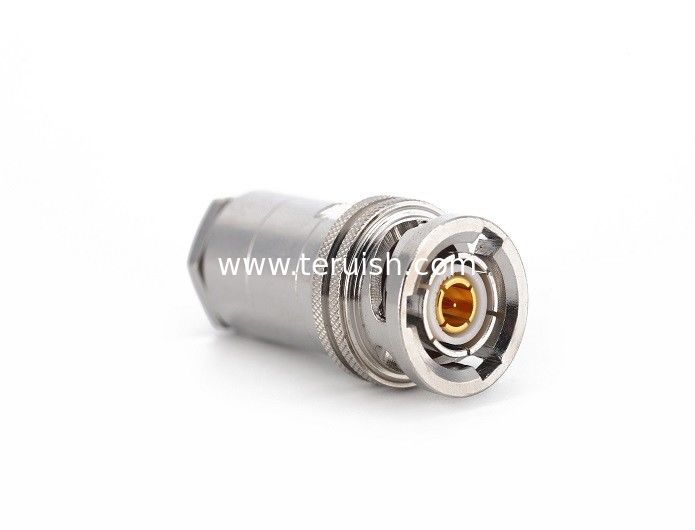

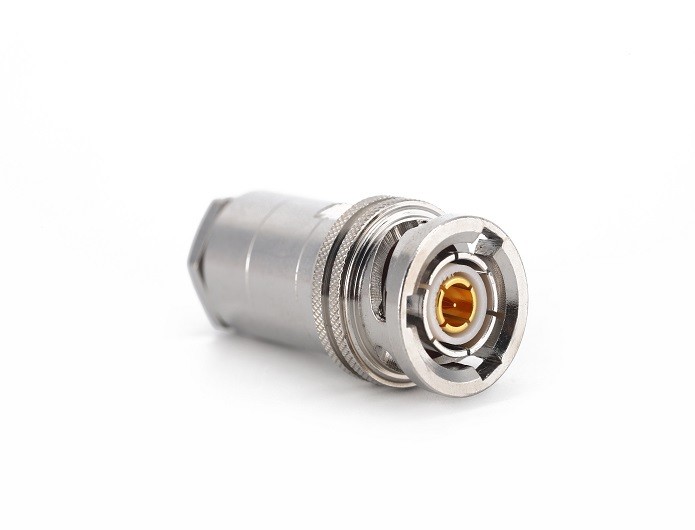

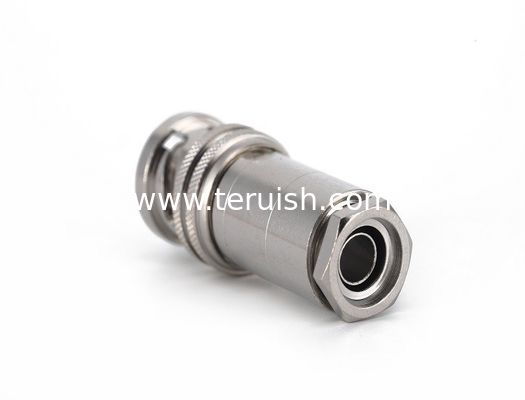

TRB Male connector for TRC-50-2 Cable
Teruilai P/N: TRB-J4A
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-500Mhz | |
| Dieletric withstanding voltage | 5.0KV | |
| Characteristic impedance | non-constant | |
| Insulation Resistance | ≧5000mΩ | |
| Contact resistance | ||
| Inner conductor | ≧2mΩ | |
| outer conductor | ≦0.5milli Ω | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco-plated |
| Pin contacts | Brass | Gold |
| Coupling nut | Brass | Suco-plated |
| Insulators | PTFE | |
