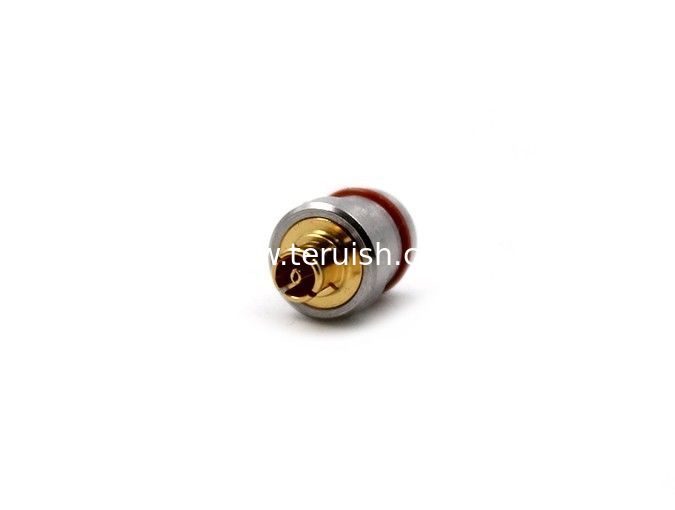

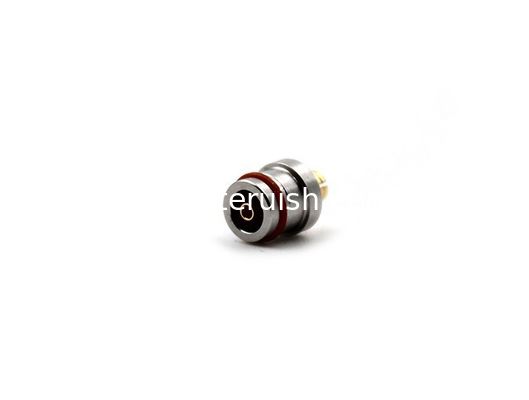

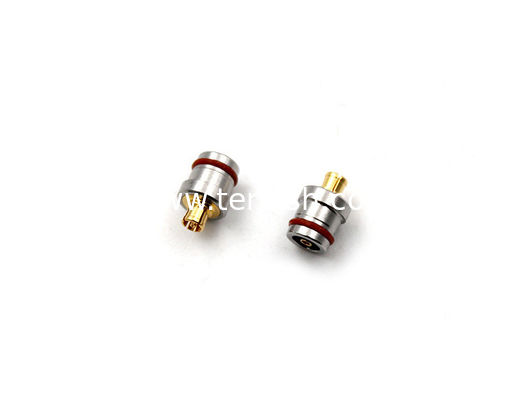

SSMP FEMALE CONNECTOR TERMINAL

SSMP FEMALE CONNECTOR TERMINAL

    • SSMP FEMALE CONNECTOR TERMINAL
    • SSMP FEMALE CONNECTOR TERMINAL
    • SSMP FEMALE CONNECTOR TERMINAL
  • SSMP FEMALE CONNECTOR TERMINAL

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TRL-SSMPF-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    SSMP FEMALE CONNECTOR TERMINAL

    Type SSMP is one kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.



    Product Details

    SSMP FEMALE CONNECTOR TERMINAL

    Teruilai P/N: TRL-SSMPF-1

    RoHS Certificate: Compliant

    Electrical Requirments
    Impedence 50Ω
    Frequency range DC-18GHZ
    Dieletric withstanding voltage 1000V(volts RMS)
    Insulation resistance ≧5000MΩ
    Center contact resistance ≦6mΩ
    Outer contact resistance ≦2mΩ
    VSWR 1.25:1
    Mechanical & Environmental Requirments
    Temperature range -45℃ ~ 85℃

    Material & Finish Requirments
    Connector parts Material Plating
    Body Brass Nickel-plated
    Contact Pin Beryllium-copper Gold
    Insulators Teflon
