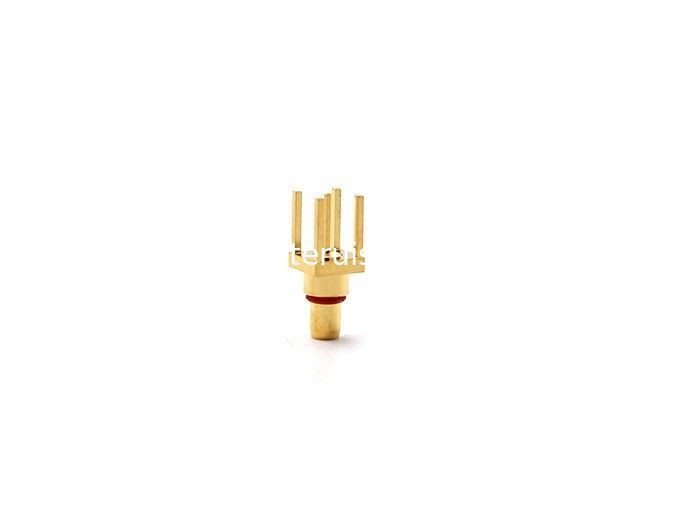

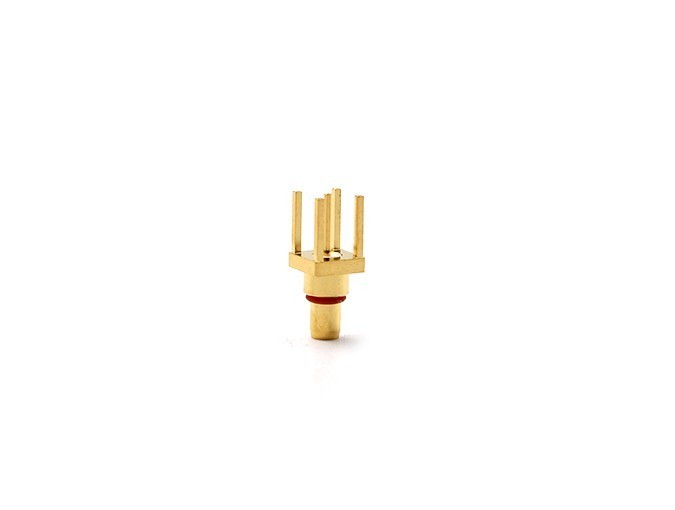

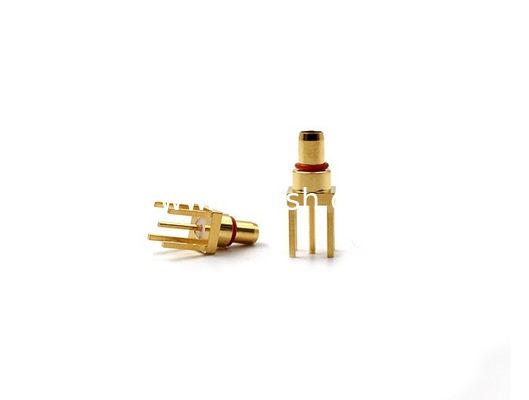

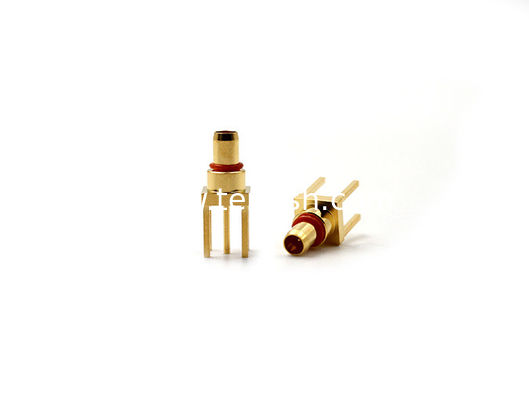

RF Connector SBMA Male PCB Mount

RF Connector SBMA Male PCB Mount

    • RF Connector SBMA Male PCB Mount
    • RF Connector SBMA Male PCB Mount
    • RF Connector SBMA Male PCB Mount
  • RF Connector SBMA Male PCB Mount

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SBMA-JHD

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector SBMA Male PCB Mount

    Type BMA is snap-on coupling miniature RF Coaxial Connector , which are specially designed for blind mate applications in low power microwave comunication system , military and civil data microwave communication system where high reliablity and easy assembly will be required .

    Product Details

    RF Connector SBMA Male PCB Mount

    Teruilai P/N: SBMA-JHD

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-18GHZ
    Dieletric withstanding voltage 750V
    Working voltage 750Vms
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦3mΩ
    .Outer conductor ≦2mΩ
    VSWR ≦1.25:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to 85℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Gold
    Pin contacts Brass Gold
    Gasket Silicon rubber
    Coupling nut Brass Gold
    Insulators Teflon
