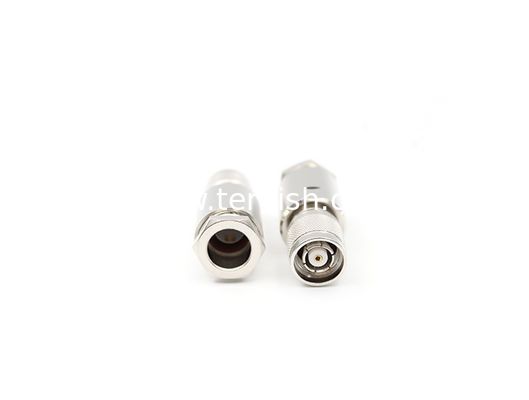

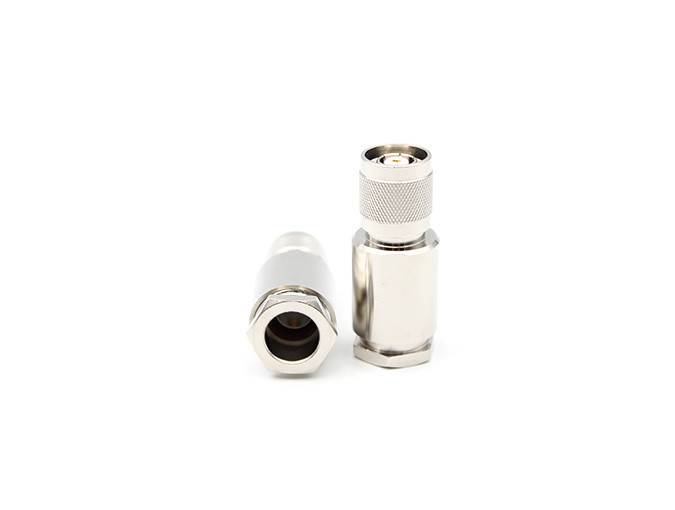

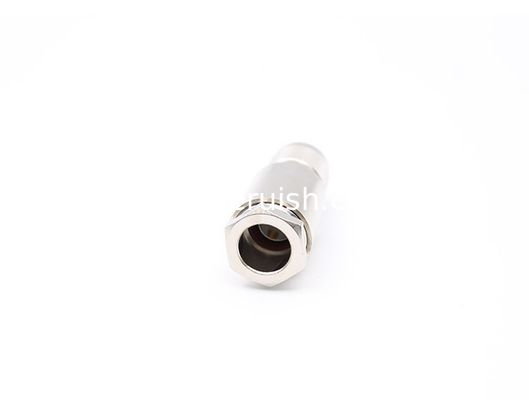

RPTNC Male for LMR400 Cable RF Connector

RPTNC Male for LMR400 Cable RF Connector

    • RPTNC Male for LMR400 Cable RF Connector
    • RPTNC Male for LMR400 Cable RF Connector
    • RPTNC Male for LMR400 Cable RF Connector
  • RPTNC Male for LMR400 Cable RF Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: RPTNC-K400A

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RPTNC Male for LMR400 Cable RF Connector

    TYPE TNC are screw-coupling middle-power coaxial connectors,which has the excellent performance of great ibration-proof,highreliability and wide working frequency, They are specially used to connect RF cables in mobile ication,aerospace,radar applications and allkinds of radio instruments.

    The interface mating dimensions and technical characteristics are according to the standard of MIL-C-39012,IEC60169-17 and CECC22200.

    Product Details

    RPTNC Male for LMR400 Cable RF Connector

    Teruilai P/N: RPTNC-K400A

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-6GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦1.5mΩ
    .Outer conductor ≦0.2mΩ
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ to 70℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel Plated
    Pin contacts Bronze Gold
    Insulators Teflon
    Crimp ferrules Copper Nickel Plated
