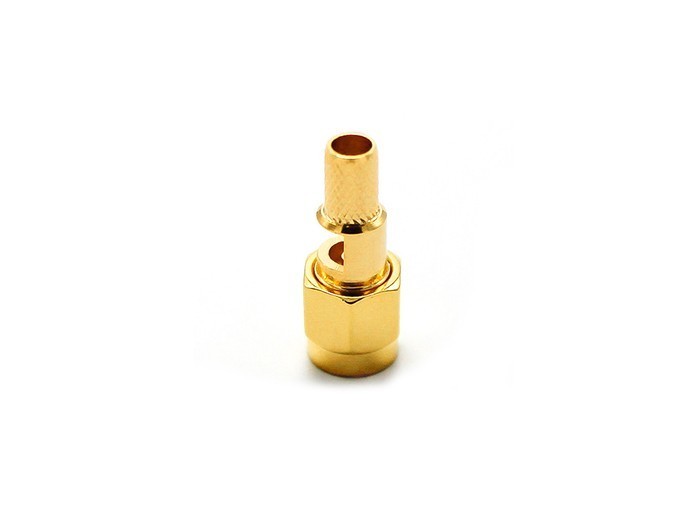

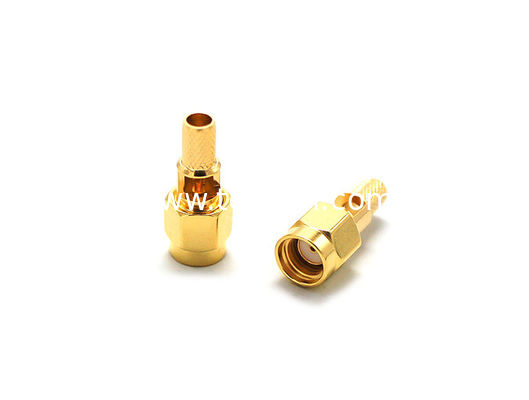

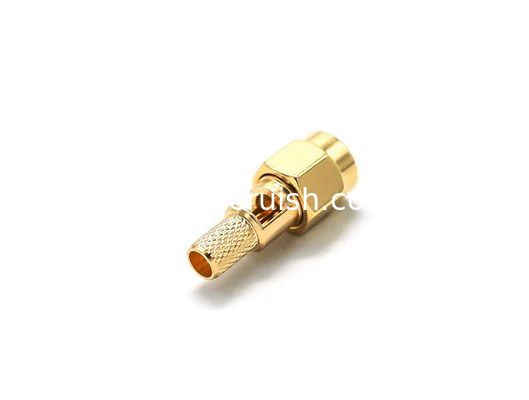

RF Connector RPSMA male for RG58 Cable

RF Connector RPSMA male for RG58 Cable

    • RF Connector RPSMA male for RG58 Cable
    • RF Connector RPSMA male for RG58 Cable
    • RF Connector RPSMA male for RG58 Cable
  • RF Connector RPSMA male for RG58 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: RPSMA-K5CY

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector RPSMA male for RG58 Cable

    Type SMA is one kind of RF coaxial connectors which is small-sized thread coupling, and its characteristic impendence is 50Ω.

    This type of connectors has t he excellent perfomance of high reliability, high mechanical strength, high durability and optimum electric properties, which are widely used in the connection of RF circuit of mobile communication equipment and electrical instruments.

    Product Details

    RF Connector RPSMA male for RG58 Cable

    Teruilai P/N: RPSMA-K5CY

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency DC-6GHz
    Center Contact Resistance ≦3MΩ
    Outer Contact Resistance ≦2MΩ
    Insulation Resistance ≧5000mΩ
    VSWR 1.20:1
    Mechanical & Enviromental Requirments
    Temperature range -45℃ ~ +85℃
    Durability >500 cycles

    Material &plating Requirments
    Connector parts Material Plating
    Body Brass Gold
    Pin Contact Beryllium copper Gold
    Crimp ferrules Brass Gold
    Insulators Teflon
