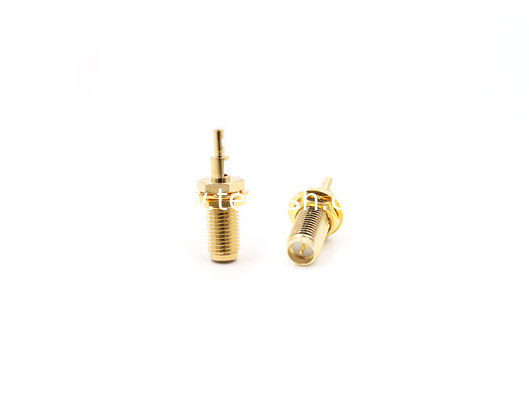

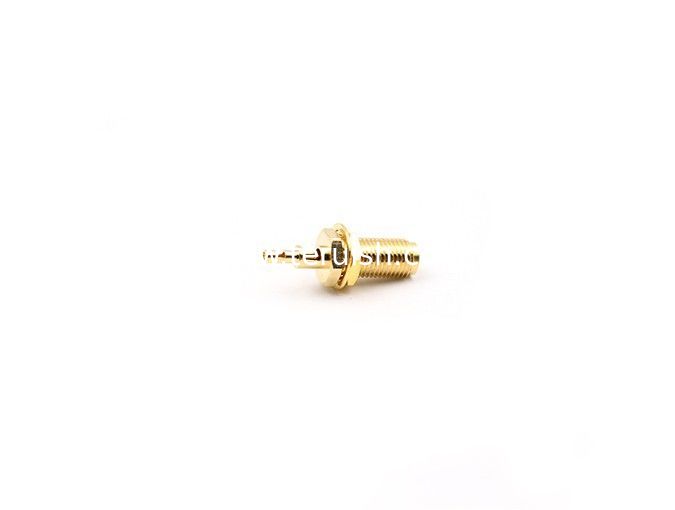

RPSMA Female Bulkhead Connector for 1.13 Cable

RPSMA Female Bulkhead Connector for 1.13 Cable

    • RPSMA Female Bulkhead Connector for 1.13 Cable
    • RPSMA Female Bulkhead Connector for 1.13 Cable
    • RPSMA Female Bulkhead Connector for 1.13 Cable
  • RPSMA Female Bulkhead Connector for 1.13 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: RPSMA-JY1.13E

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RPSMA Female Bulkhead Connector for 1.13 Cable

    SMA male right angle Micro RF Coaxial Connector for 086 cable sky window is one kind of coaxial precision connector up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is small size, high mechanical strength, high durability, and optimum electrical properties. They can be widely used in the field of micro-wave communication, spaceflight, and navigation, instrument and etc.



    Product Details

    RPSMA Female Bulkhead Connector for 1.13 Cable

    Teruilai P/N: RPSMA-JY1.13E

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency DC-6GHz
    Center Contact Resistance ≦3MΩ
    Outer Contact Resistance ≦2MΩ
    Insulation Resistance ≧5000mΩ
    VSWR 1.20:1
    Mechanical & Enviromental Requirments
    Temperature range -45℃ ~ +85℃
    Durability >500 cycles

    Material &plating Requirments
    Connector parts Material Plating
    Body Brass Nickel plated
    Pin Contact Brass Gold
    Insulators Teflon
