| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | QN-KYFD1 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |

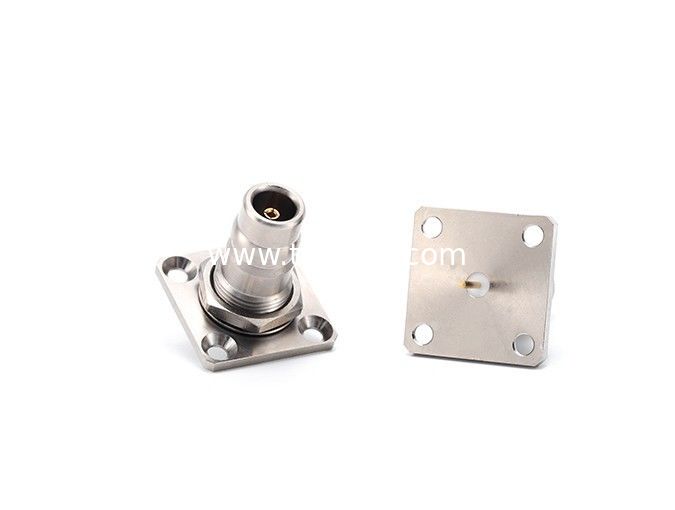

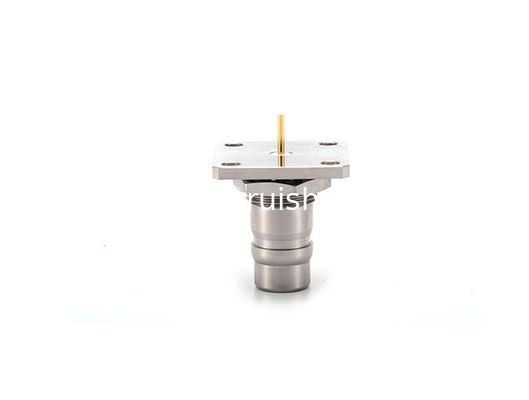

RF Connector QN Female Bulkhead Flange Mount
Teruilai P/N:QN-KYFD1
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| Dieletric withstanding voltage | 500V(volts RMS) | |
| Center contact resistance | ≦1MΩ | |
| Outer Contact resistance | ≦0.2MΩ | |
| Insulation Resistance | ≧1000MΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Pin contacts | Beryllium copper | Gold |
| Insulators | Teflon | |
