SSMA Female Connector PCB

SSMA Female Connector PCB

    • SSMA Female Connector PCB
    • SSMA Female Connector PCB
    • SSMA Female Connector PCB
  • SSMA Female Connector PCB

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SSMA-KHD-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

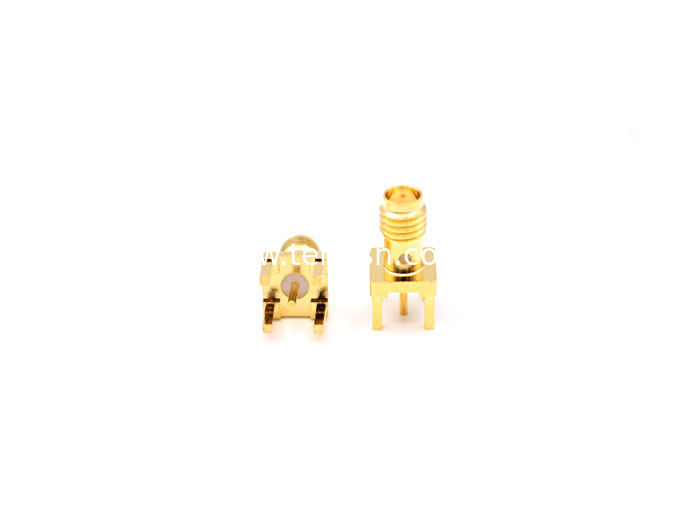

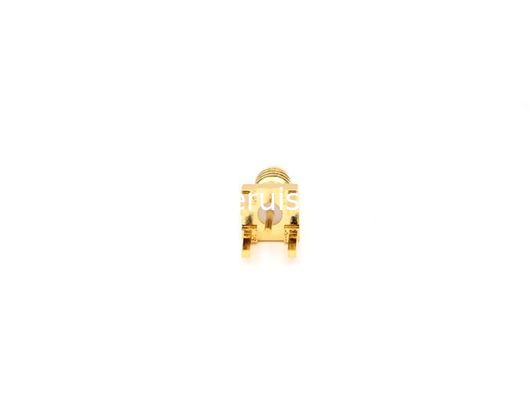

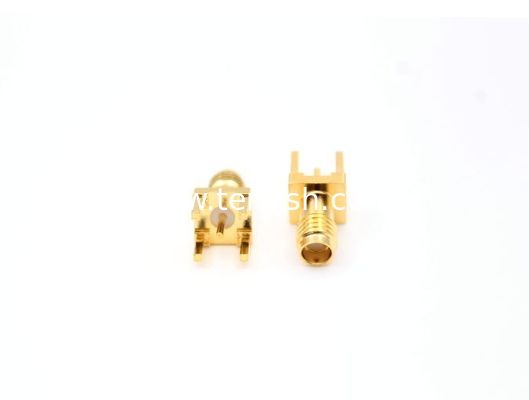

    SSMA Female Connector PCB

    This 50 Ohm SSMA Connectors is precision manufactured to RF components industry specifications.

    Product Details

    SSMA Female Connector PCB

    Teruilai P/N: SSMA-KHD-1

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency DC-18GHz
    Center Contact Resistance ≦3MΩ
    Outer Contact Resistance ≦2MΩ
    Insulation Resistance ≧5000mΩ
    VSWR 1.20:1
    Mechanical & Enviromental Requirments
    Temperature range -40℃ ~ +85℃
    Durability >500 cycles

    Material &plating Requirments
    Connector parts Material Plating
    Body Brass Gold
    Pin Contact Beryllium copper Gold
    Insulators Teflon
