| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | SSMA-KWHD-A |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
This 50 Ohm SSMA Connectors is precision manufactured to RF components industry specifications.

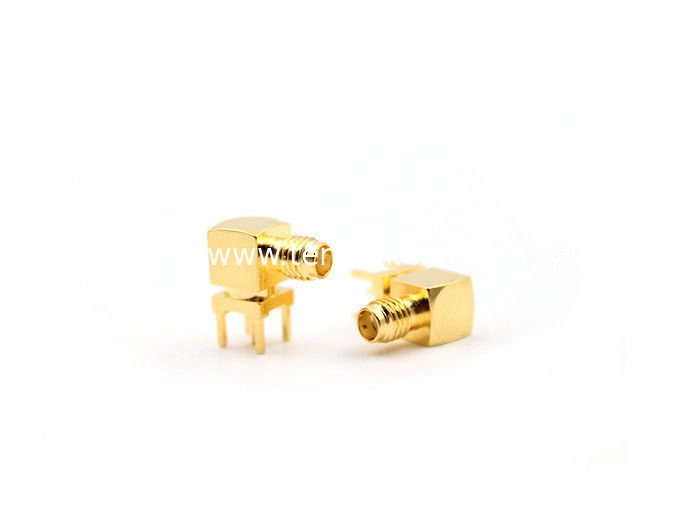

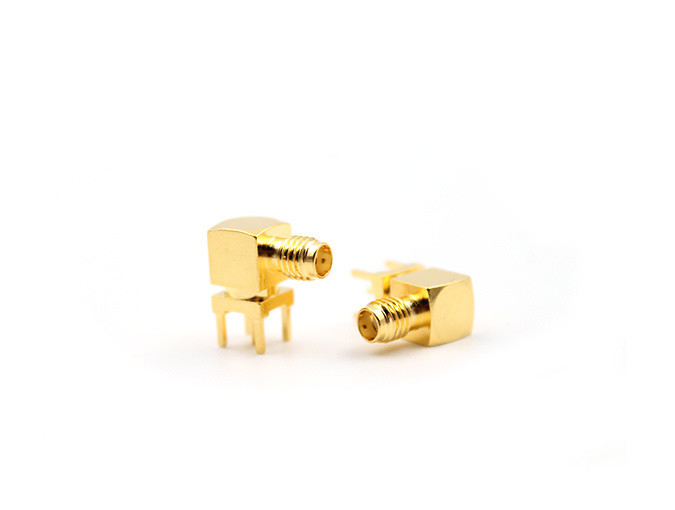

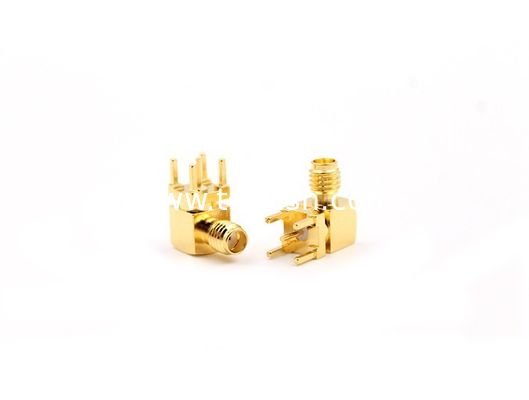

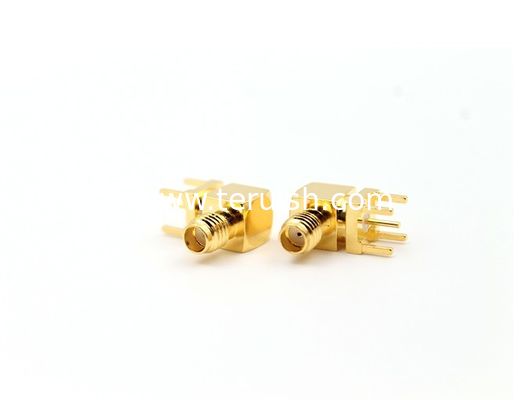

RF Connector SSMA Female Right Angle PCB Mount
Teruilai P/N: SSMA-KWHD-A
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | 1.20:1 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -40℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Beryllium copper | Gold |
| Insulators | Teflon | |
