SMA Male Connector For 1.13/1.32/1.37 Cable

SMA Male Connector For 1.13/1.32/1.37 Cable

    • SMA Male Connector For 1.13/1.32/1.37 Cable
    • SMA Male Connector For 1.13/1.32/1.37 Cable
    • SMA Male Connector For 1.13/1.32/1.37 Cable
  • SMA Male Connector For 1.13/1.32/1.37 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: ISMA-JB1A

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

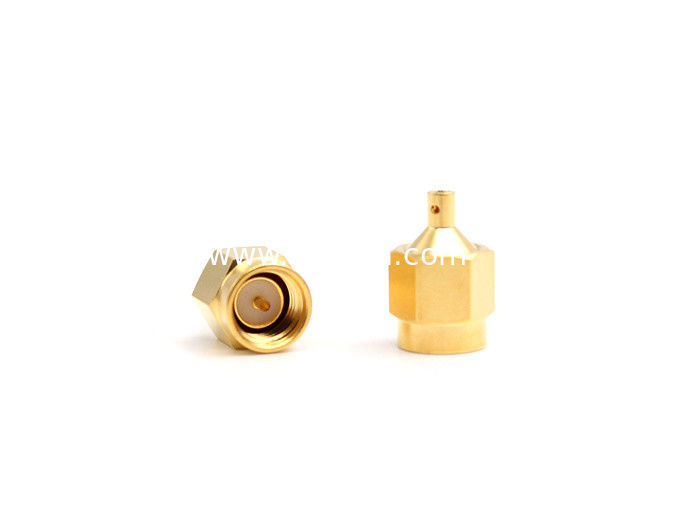

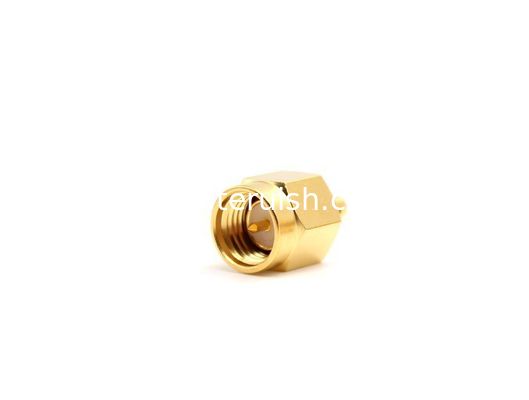

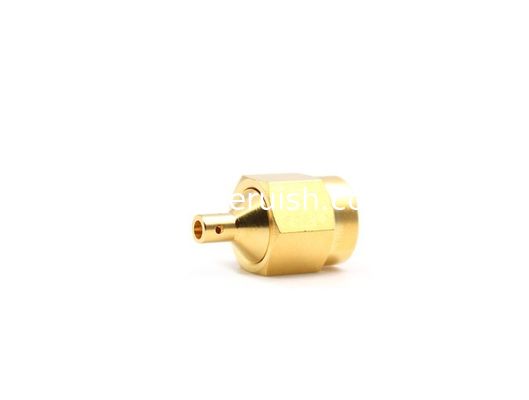

    SMA Male Connector For 1.13/1.32/1.37 Cable

    Type SMA is one kind of RF coaxial connectors which is small-sized thread coupling, and its characteristic impendence is 50Ω.

    The interface mating dimensions and technical characteristics are according to the standard of MIL-C-39012, IEC169-15 and CECC22110.



    Product Details

    SMA Male Connector For 1.13/1.32/1.37 Cable

    Teruilai P/N: ISMA-JB1A

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency DC-18GHz
    Center Contact Resistance ≦3MΩ
    Outer Contact Resistance ≦2MΩ
    Insulation Resistance ≧5000mΩ
    VSWR 1.30:1
    Mechanical & Enviromental Requirments
    Temperature range -45℃ ~ +125℃
    Durability >500 cycles

    Material &plating Requirments
    Connector parts Material Plating
    Body Brass Gold
    Pin Contact Brass Gold
    Insulators Teflon
    Coupling nut Brass Gold
