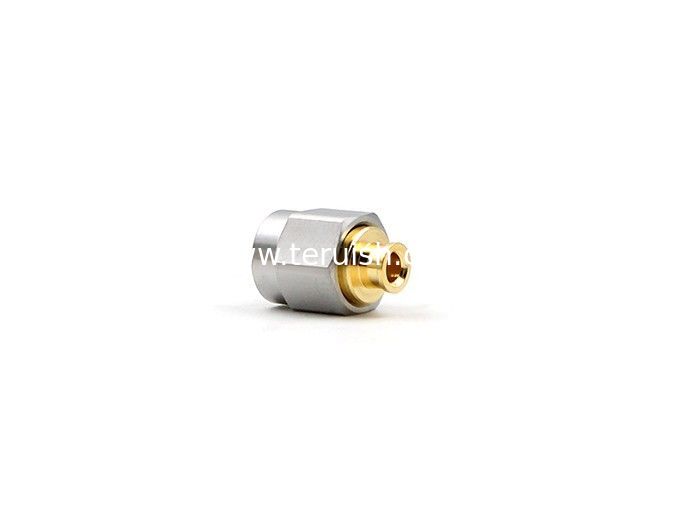

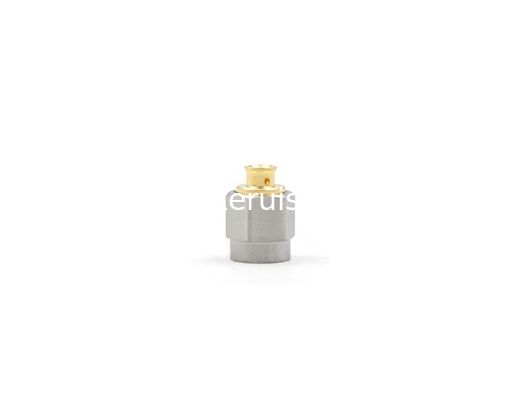

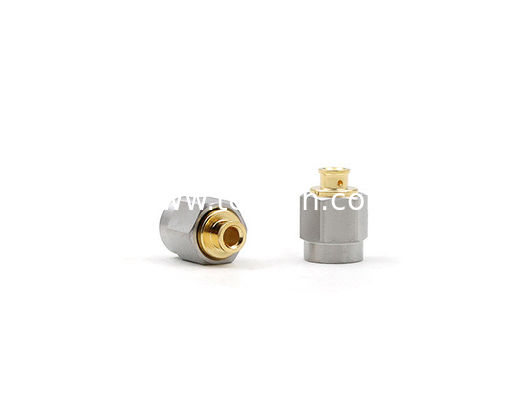

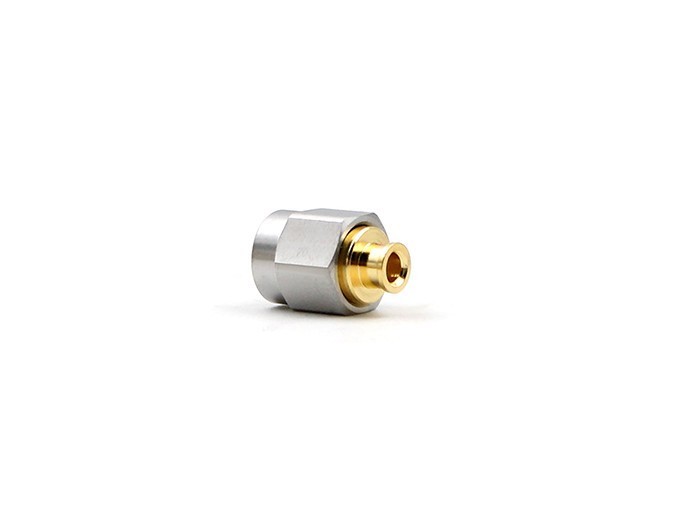

RF Connector ISMA Male for RG405 Cable

RF Connector ISMA Male for RG405 Cable

    • RF Connector ISMA Male for RG405 Cable
    • RF Connector ISMA Male for RG405 Cable
    • RF Connector ISMA Male for RG405 Cable
  • RF Connector ISMA Male for RG405 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: ISMA-JB405S

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector ISMA Male for RG405 Cable

    ISMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

    Product Details

    RF Connector ISMA Male for RG405 Cable

    Teruilai P/N: ISMA-JB405S

    RoHS Certificate: Compliant

    Electrical Requirments
    Impedence 50Ω
    Frequency range DC-18GHZ
    Dieletric withstanding voltage 1000V(volts RMS)
    Center contact resistance ≦3mΩ
    Outer contact resistance ≦2mΩ
    Insulation resistance ≧5000MΩ
    VSWR 1.30:1

    Mechanical & Environmental Requirments
    Temperature range -45℃ ~ +85℃
    RoHs Compliant
    Durability(matings) >500 cycles

    Material & Finish Requirments
    Connector parts Material Plating
    Body Brass Gold
    Insulators Teflon
    Coupling nut Stainless Steel Passivated
