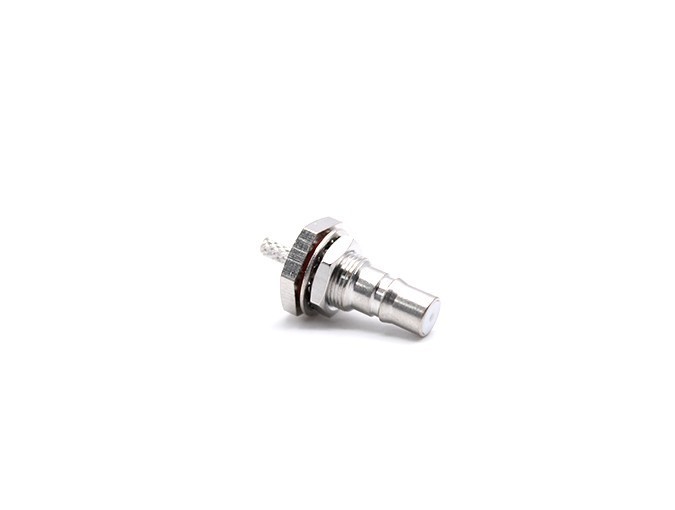

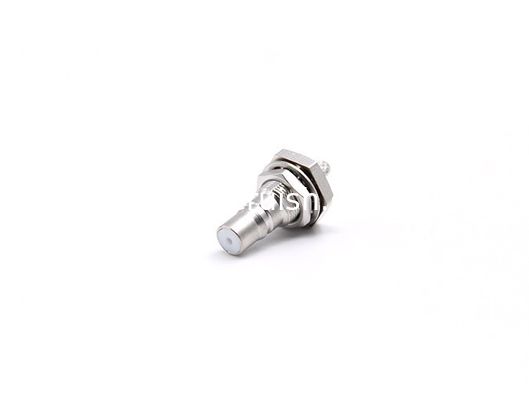

QMA female Strajght B/H Connector for RG316 Cable

QMA female Strajght B/H Connector for RG316 Cable

    • QMA female Strajght B/H Connector for RG316 Cable
    • QMA female Strajght B/H Connector for RG316 Cable
    • QMA female Strajght B/H Connector for RG316 Cable
  • QMA female Strajght B/H Connector for RG316 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: QMA-KY3Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    QMA female Strajght B/H Connector for RG316 Cable

    The QMA interface has a very similar performance to theSMA,but in addition it offers an easier, faster and safercoupling operation,helping customers to save significantlytime during production. The packaging density of QMA isincreased compared to SMA connectors thanks to the fact thatno torque spanner is required to fasten the coupling nut.QMA is not intermateable with SMA.QMA connectors are also available as waterproof version(IP68) and are compatible with QLF standard.

    Product Details

    QMA female Strajght B/H Connector for RG316 Cable

    Teruilai P/N:QMA-KY3Y

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-6GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    VSWR 1.25:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ ~+85℃

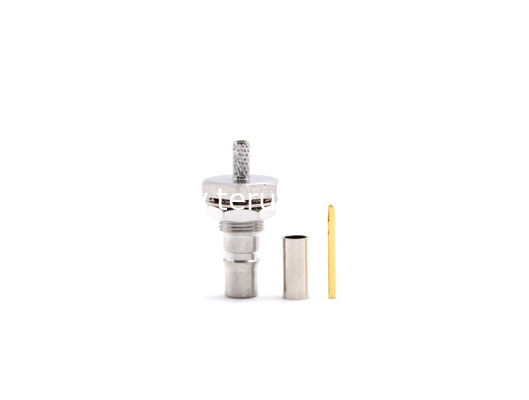

    Material data Requirments
    Connector parts Material Plating
    Body Brass Suco plated
    Pin contacts Beryllium copper Gold
    Crimp Ferrule Copper Nickel plated
    Gasket Silicon rubber
    Insulators Teflon
