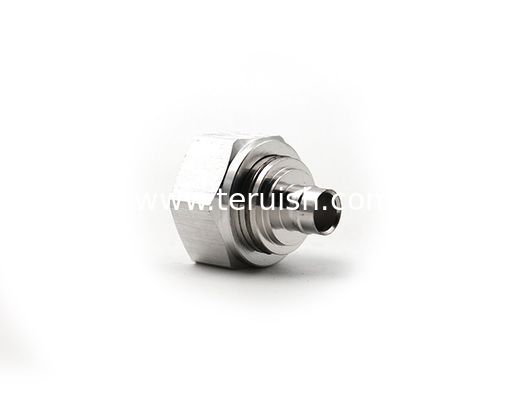

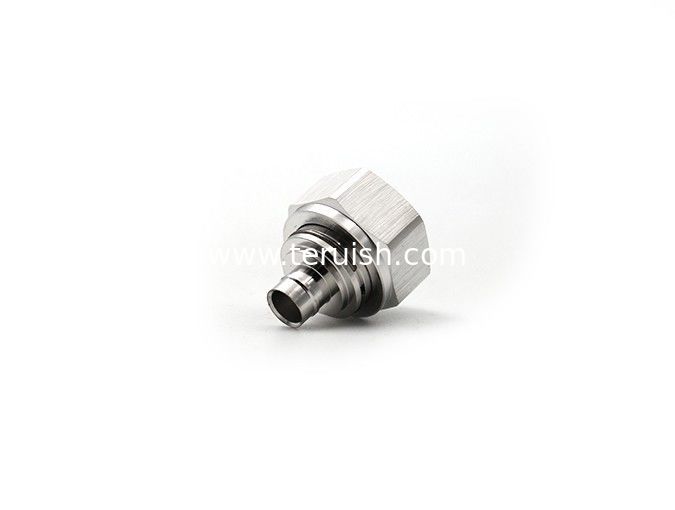

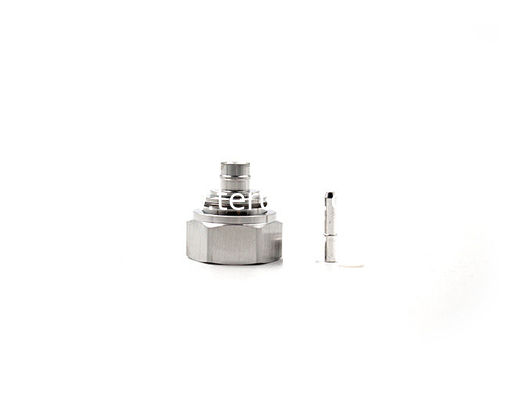

4.3-10 male RF Connector for UT/RG401 Cable

4.3-10 male RF Connector for UT/RG401 Cable

    • 4.3-10 male RF Connector for UT/RG401 Cable
    • 4.3-10 male RF Connector for UT/RG401 Cable
    • 4.3-10 male RF Connector for UT/RG401 Cable
  • 4.3-10 male RF Connector for UT/RG401 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 4.3-10-JB401

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    4.3-10 male RF Connector for UT/RG401 Cable

    4.3-10 male coaxial push connector impedance is 50 ohm. 4.3-10 Male connectors adopt shielded/contact solder/solder as connection method.

    Our male 4.3-10 coaxial connector provides DC at the lowest frequency and 6 GHz at the highest frequency.

    Product Details

    4.3-10 male RF Connector for UT/RG401 Cable

    Teruilai P/N: 4.3-10-JB401

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-3GHZ
    Dielectric withstanding voltage 2500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧10000MΩ
    VSWR ≦1.15

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to +85℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Suco plated
    Pin contacts Bronze Silver plated
    Gasket Silicon rubber
    Insulators Teflon
