| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | SMB-JFD3 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

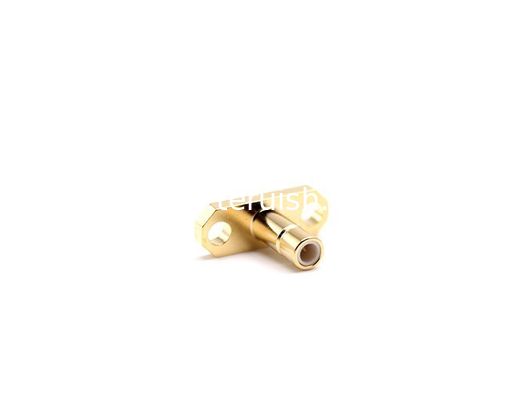

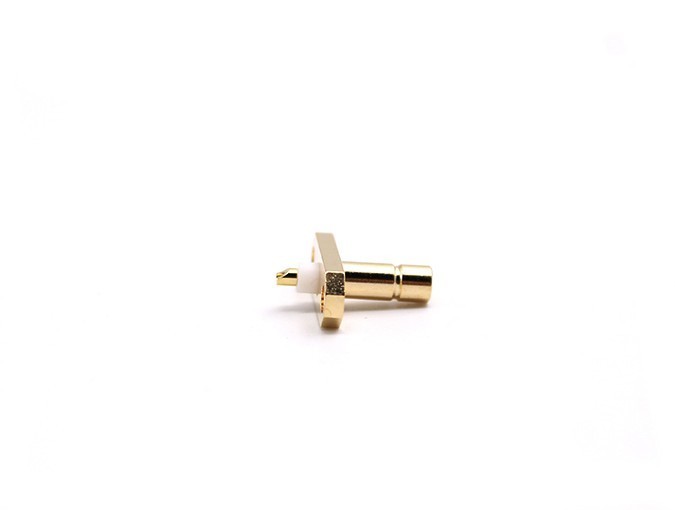

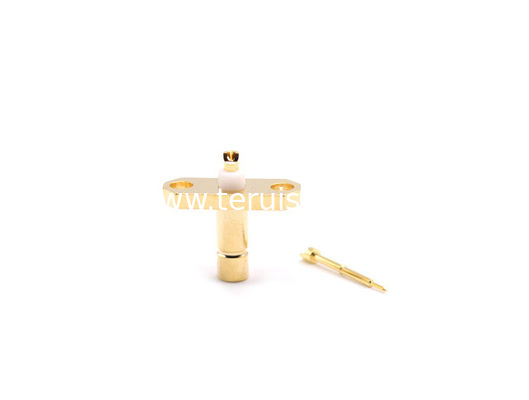

SMB Male Flange Connector for Terminal
Teruilai P/N: SMB-JFD3
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-4GHz | |
| Center Contact Resistance | ≦6MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| VSWR | ≦1.34 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
| coupling nut | Brass | Gold |
