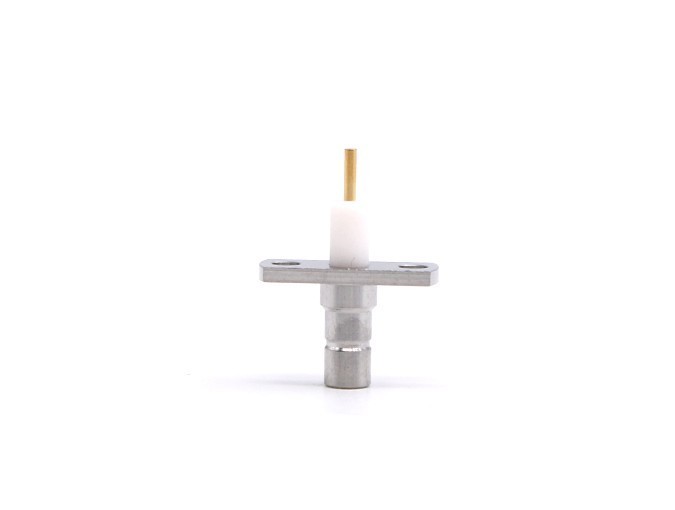

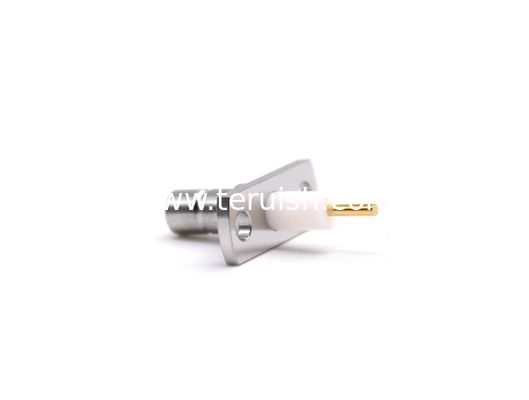

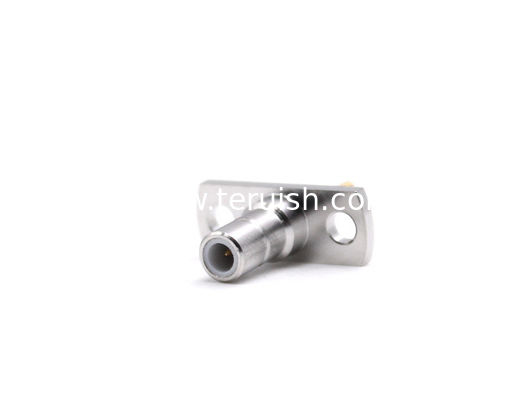

SMB Male Flange Stainless Steel RF Connector

SMB Male Flange Stainless Steel RF Connector

    • SMB Male Flange Stainless Steel RF Connector
    • SMB Male Flange Stainless Steel RF Connector
    • SMB Male Flange Stainless Steel RF Connector
  • SMB Male Flange Stainless Steel RF Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SMB-JFD1G

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    SMB Male Flange Stainless Steel RF Connector

    SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

    Product Details

    SMB Male Flange Stainless Steel RF Connector

    Teruilai P/N: SMB-JFD1G

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency DC-4GHz
    Center Contact Resistance ≦6MΩ
    Outer Contact Resistance ≦1MΩ
    Insulation Resistance ≧1000mΩ

    Mechanical & Enviromental Requirments
    Temperature range -45℃ ~ +125℃
    Durability >500 cycles

    Material &plating Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin Contact Brass Gold
    Insulators Teflon
