| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | SMB-75KB2 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

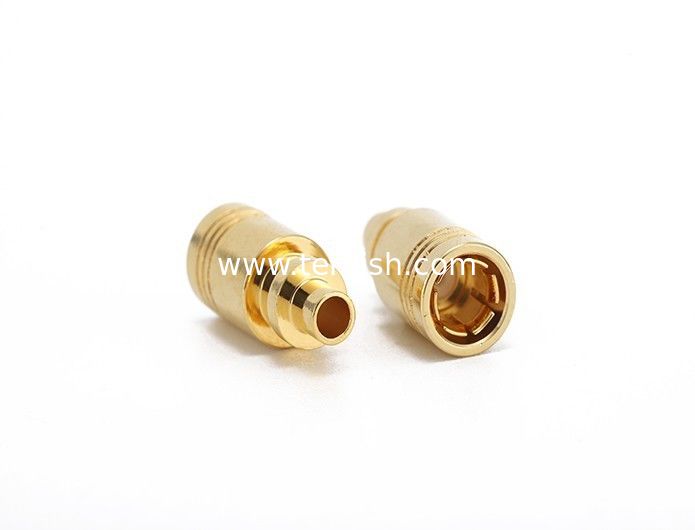

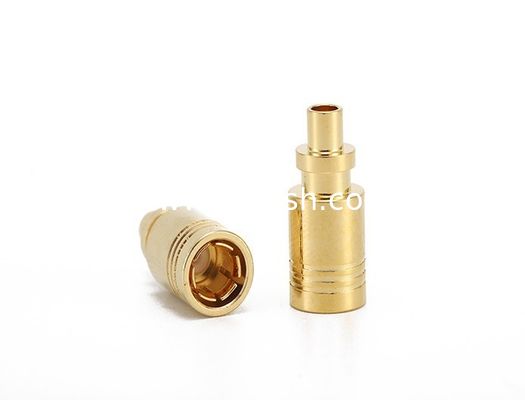

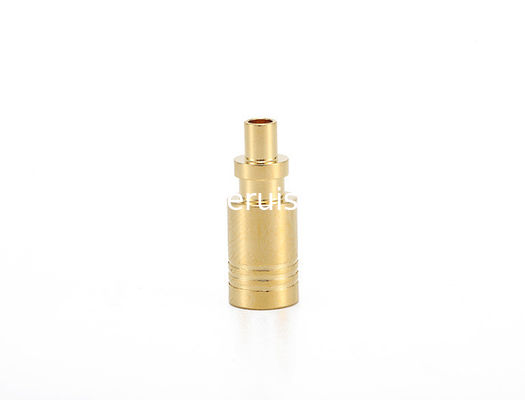

SMB female straight connector for RG405 Cable
Teruilai P/N: SMB-75KB2
RoHS Certificate : Compliant
| Electrical data | Requirments | |
| Frequency range | DC-2GHZ | |
| Dieletric withstanding voltage | 1000V | |
| working voltage | ≦335V | |
| Characteristic impedance | 75Ω | |
| Insulation Resistance | ≧1000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦6.0mΩ | |
| .Outer conductor | ≦1.0mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Inner Contact | beryllium copper | Gold-plated |
| Outer Contact | Brass | Gold-plated |
| Insulators | Teflon | |
| Contact Spring | Beryllium copper | Gold-plated |
