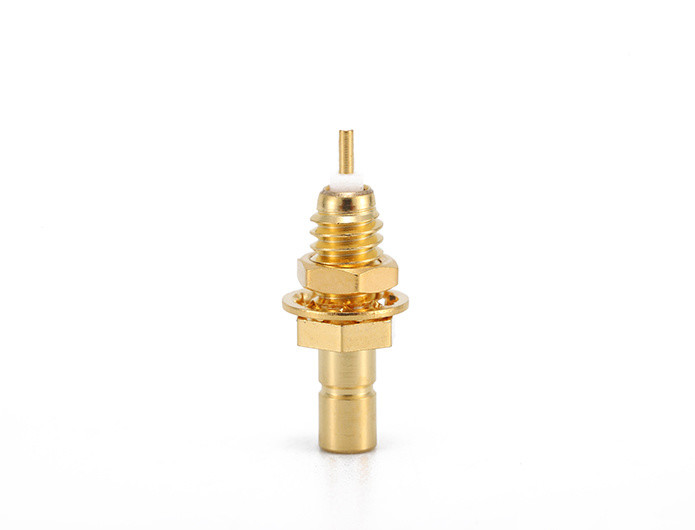

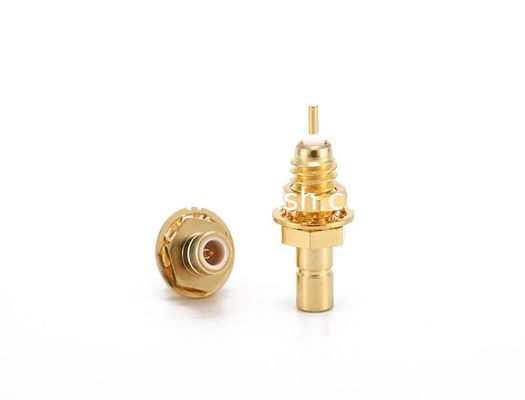

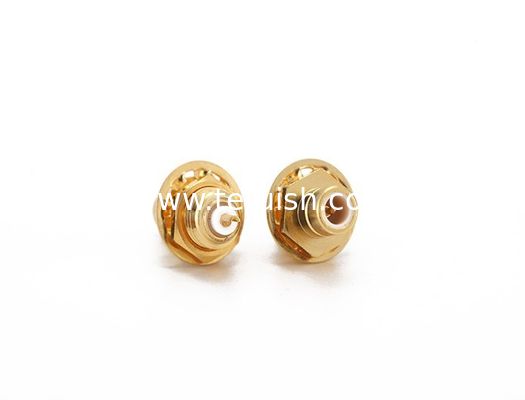

SMB male bulkhead RF Coaxial Connector

SMB male bulkhead RF Coaxial Connector

    • SMB male bulkhead RF Coaxial Connector
    • SMB male bulkhead RF Coaxial Connector
    • SMB male bulkhead RF Coaxial Connector
  • SMB male bulkhead RF Coaxial Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SMB-JYD2

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    SMB male bulkhead RF Coaxial Connector

    SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

    Product Details

    SMB male bulkhead RF Coaxial Connector

    Teruilai P/N: SMB-JYD2

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-4GHZ
    Dieletric withstanding voltage 750V
    working voltage ≦250V
    Characteristic impedance 50Ω
    Insulation Resistance ≧1000MΩ
    Contact Resistance
    .Center conductor ≦6.0mΩ
    .Outer conductor ≦1.0mΩ

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to 85℃

    Material data Requirments
    Connector parts Material Plating
    Inner Contact Brass Gold-plated
    Outer Contact Brass Gold-plated
    Insulators Teflon
    Hex nut brass Gold-plated
    washer phosphor bronze gold-plating
