| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | UHF-J5Y-E |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.

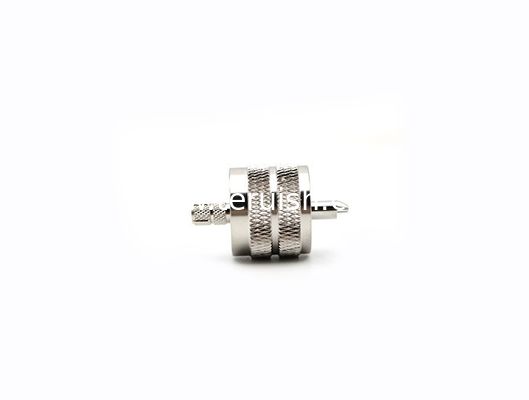

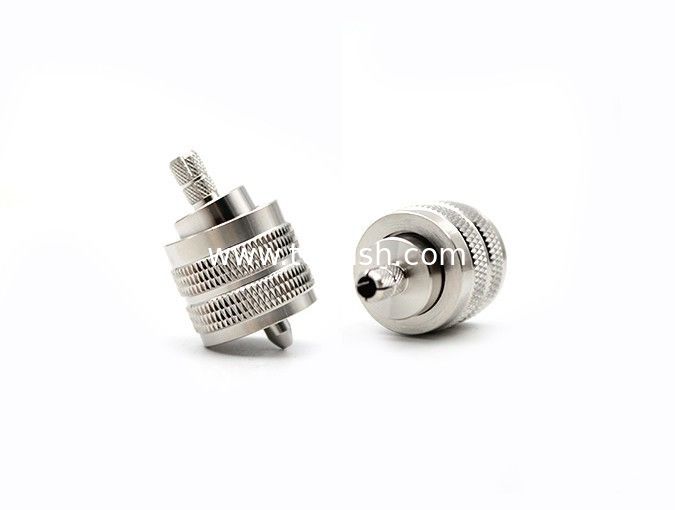

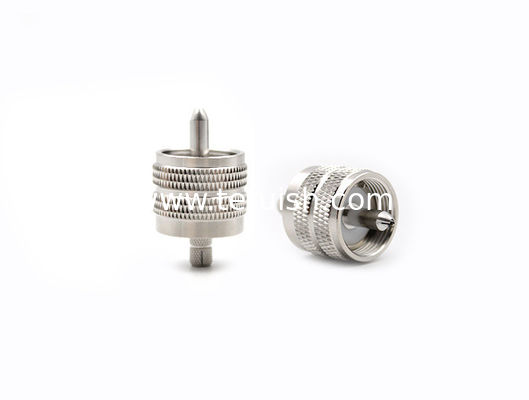

UHF Male Connector for RG58 Cable
Teruilai P/N: UHF-J5Y-E
RoHS Certificate: Compliant
| E;ectrical data | Requirments | |
| Frequency range | DC-300MHZ | |
| Dieletric withstanding voltage | 2000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦5mΩ | |
| .Outer conductor | ≦5mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Brass | Silver plated |
| Insulators | Teflon | |
