| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | UHF-J240CY |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.

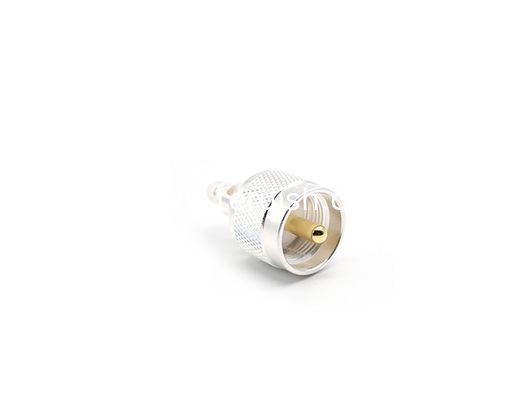

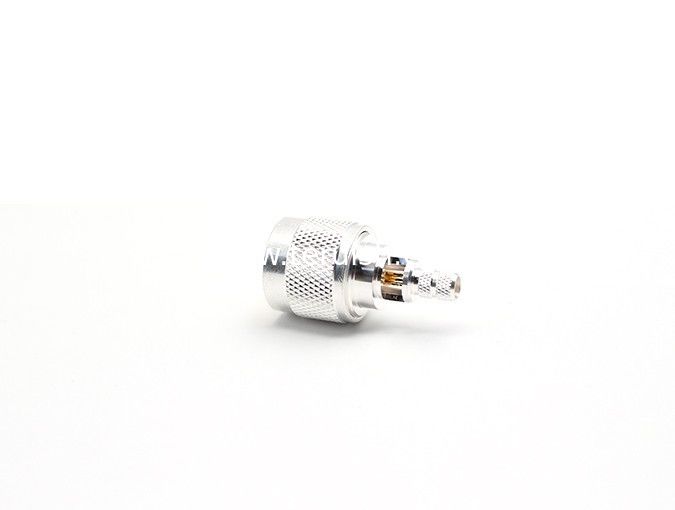

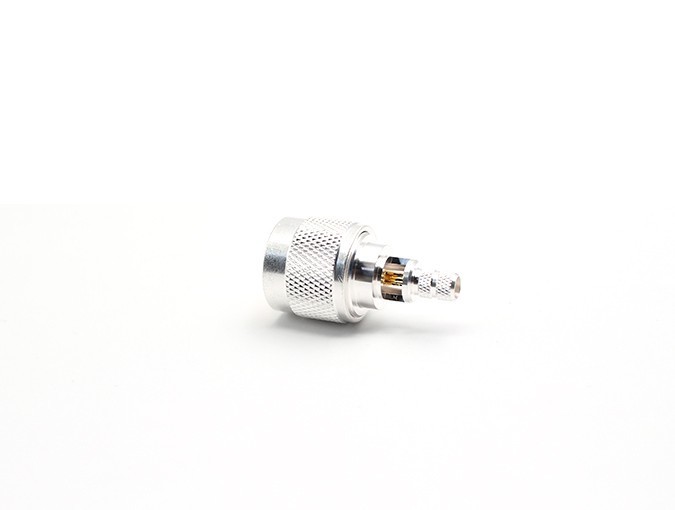

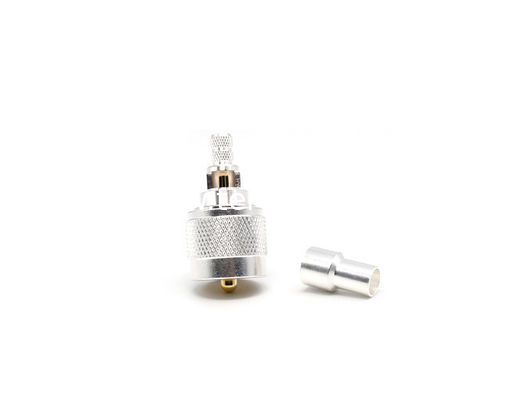

RF Connector UHF Male for LMR240 Cable Crimp
Teruilai P/N : UHF-J240CY
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 1.0MΩ max | |
| Outer Contact Resistance | 0.2MΩ mas | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Silver plated |
| Contact Pin | Brass | Gold |
| Coupling nut | Brass | Silver plated |
| Crimp ferrules | Copper | Silver plated |
| Insulators | Teflon | |
