UHF Male Twist-on Connector For SYV-50-7-1 Cable

UHF Male Twist-on Connector For SYV-50-7-1 Cable

    • UHF Male Twist-on Connector For SYV-50-7-1 Cable
    • UHF Male Twist-on Connector For SYV-50-7-1 Cable
    • UHF Male Twist-on Connector For SYV-50-7-1 Cable
  • UHF Male Twist-on Connector For SYV-50-7-1 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: UHF-J7H

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

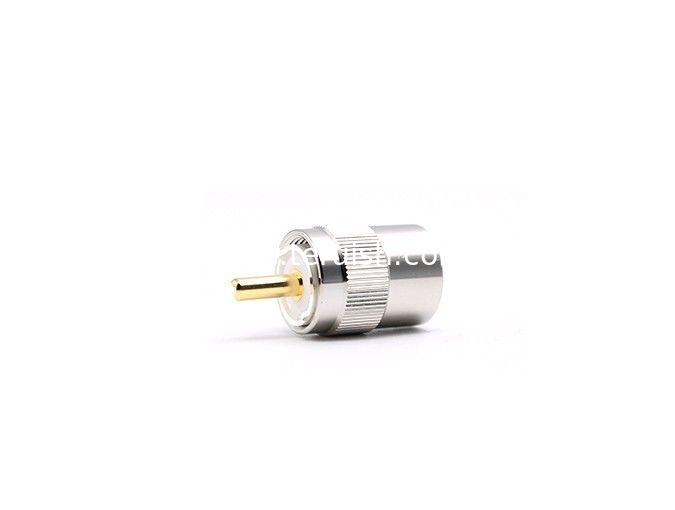

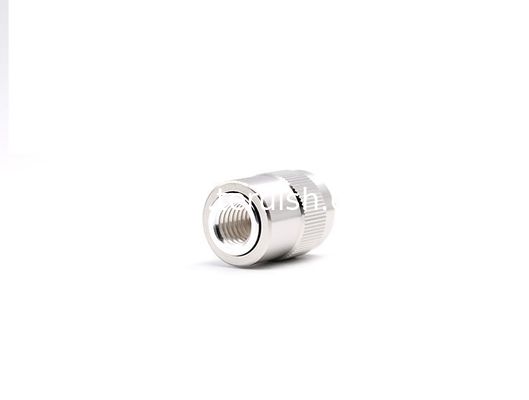

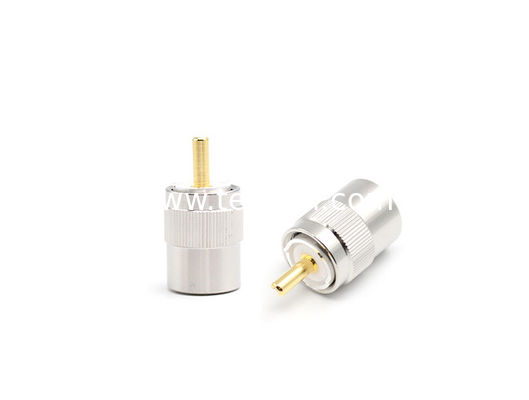

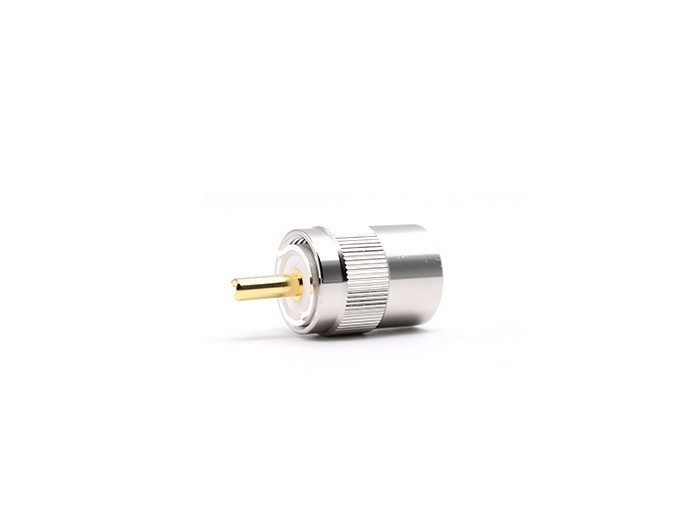

    UHF Male Twist-on Connector For SYV-50-7-1 Cable

    UHF is one kind of coaxial precision connectors up to 300MHZ . They can be widely used in the field of communication systems,CATV,mobile radio equipment, ship to shore communications, landing systems and ground control apparatus.

    Product Details

    UHF Male Twist-on Connector For SYV-50-7-1 Cable

    Teruilai P/N : UHF-J7H

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency range 0-300MHZ
    Insulation resistance 5000MΩ
    Center Contact Resistance 1.0MΩ max
    Outer Contact Resistance 0.2MΩ mas

    Environmental data Requirments
    Temperature range -45℃ to 125℃
    Rohs compliant Yes

    Material data Requirments
    Connector parts Material Plating
    Body Brass Silver plated
    Contact Pin Brass Gold
    Shell Brass Nickel plated
    Insulators Teflon
