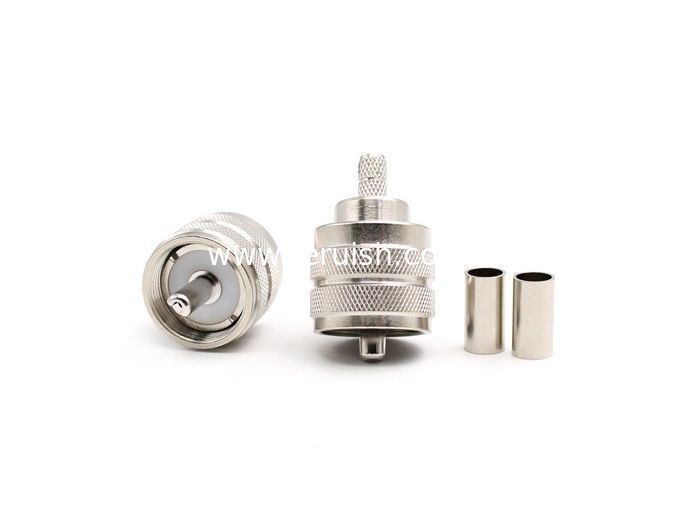

RF Connector UHF Male for RG58 cable crimp

RF Connector UHF Male for RG58 cable crimp

    • RF Connector UHF Male for RG58 cable crimp
    • RF Connector UHF Male for RG58 cable crimp
    • RF Connector UHF Male for RG58 cable crimp
  • RF Connector UHF Male for RG58 cable crimp

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: UHF-J5BY

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector UHF Male for RG58 cable crimp

    UHF is one kind of coaxial precision connectors up to 300MHZ . They can be widely used in the field of communication systems,CATV,mobile radio equipment, ship to shore communications, landing systems and ground control apparatus



    Product Details

    RF Connector UHF Male for RG58 cable crimp

    Teruilai P/N : UHF-J5BY

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency range 0-300MHZ
    Insulation resistance 5000MΩ
    Center Contact Resistance 1.0MΩ max
    Outer Contact Resistance 0.2MΩ mas

    Environmental data Requirments
    Temperature range -45℃ to 125℃
    Rohs compliant Yes

    Material data Requirments
    Connector parts Material Plating
    Outer Contact Brass Nickel plated
    Contact Pin Bronze Nickel plated
    Coupling nut Brass Nickel plated
    Crimp ferrules Brass Nickel plated
    Insulators PTFE
