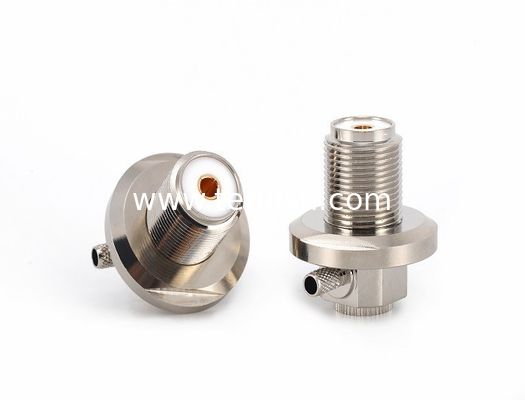

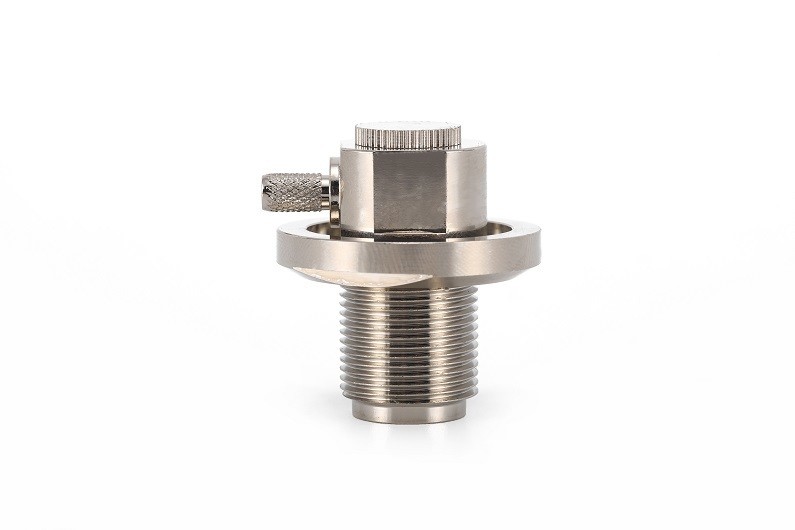

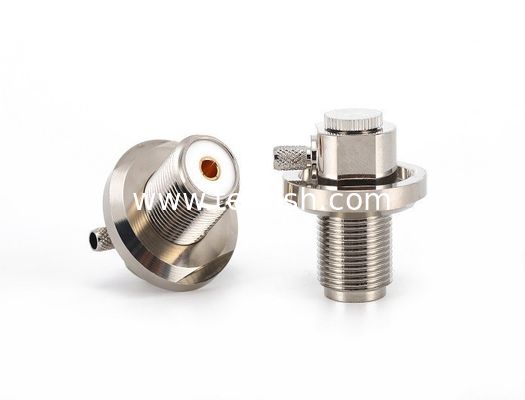

UHF female right angle crimp for RG 58 cable RF Coaxial Connector

UHF female right angle crimp for RG 58 cable RF Coaxial Connector

    • UHF female right angle crimp for RG 58 cable RF Coaxial Connector
    • UHF female right angle crimp for RG 58 cable RF Coaxial Connector
    • UHF female right angle crimp for RG 58 cable RF Coaxial Connector
  • UHF female right angle crimp for RG 58 cable RF Coaxial Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: UHF-KW5Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    UHF female right angle crimp for RG 58 cable RF Coaxial Connector

    UHF is one kind of coaxial precision connectors up to 300MHZ . They can be widely used in the field of communication systems,CATV,mobile radio equipment, ship to shore communications, landing systems and ground control apparatus.



    Product Details



    UHF female right angle crimp for RG 58 cable RF Coaxial Connector

    Teruilai P/N : UHF-KW5Y

    RoHS Certificate: Compliant

    Electrical data Requirments
    Impedence 50Ω
    Frequency range 0-300MHZ
    Insulation resistance ≧5000MΩ
    Dielectric strength 2000V
    Working Voltage ≦750V
    Center Contact Resistance ≦5MΩ
    Outer Contact Resistance ≦5MΩ

    Environmental data Requirments
    Temperature range -45℃ to 125℃
    Rohs compliant

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel plated
    Contact Pin phosphor bronze Gold-plated
    Insulators Teflon
    Ferrulel copper nickel plated
    Gasket silicon rubber
