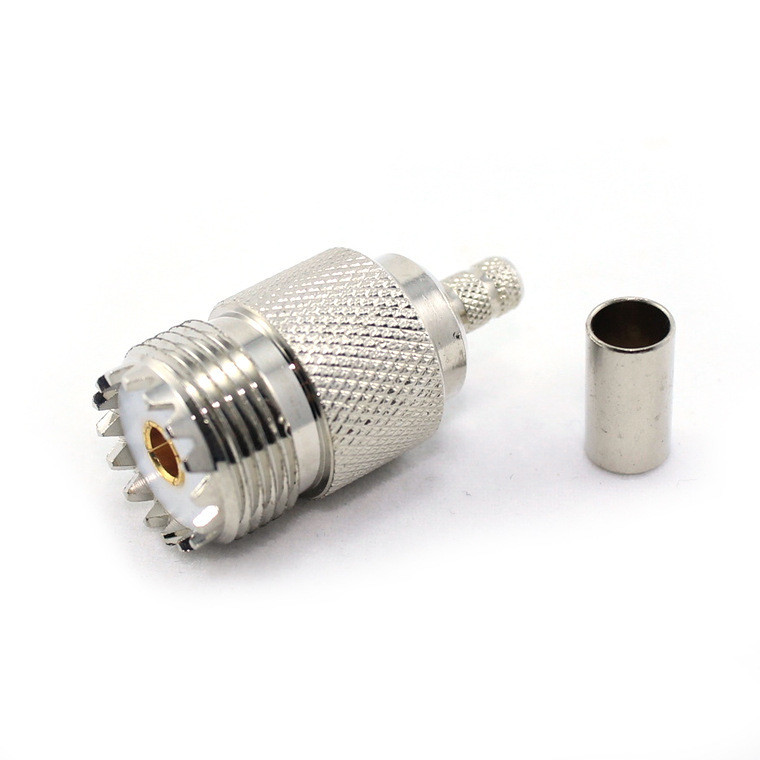

UHF female Crimp for RG 59 Cable RF Coaxial Connector

UHF female Crimp for RG 59 Cable RF Coaxial Connector

UHF female Crimp for RG 59 Cable RF Coaxial Connector

Product Details:

Place of Origin: China
Brand Name: Terui
Certification: RoHS
Model Number: UHF-K6Y

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: Standard export packaging
Delivery Time: 3-10 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000000pcs per month
Contact Now
Detailed Product Description

UHF female Crimp for RG 59 Cable RF Coaxial Connector

Series UHF is a connector with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground

control apparatus.



Product Details



UHF female Crimp for RG 59 Cable RF Coaxial Connector

Teruilai P/N: UHF-K6Y

RoHS Certificate: Compliant

E;ectrical data Requirments
Frequency range DC-300MHZ
Dieletric withstanding voltage 1500V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦0.005mΩ
.Outer conductor ≦0.005mΩ

Mechanical data Requirments
Durability (matings) ≧500

Environmental data Requirments
Temperature range -40℃ to 125℃

Material data Requirments
Connector parts Material Plating
Body Brass Nickel/Suco-plated
Pin contacts Beryllium-Copper Gold-plated
Insulators Teflon
