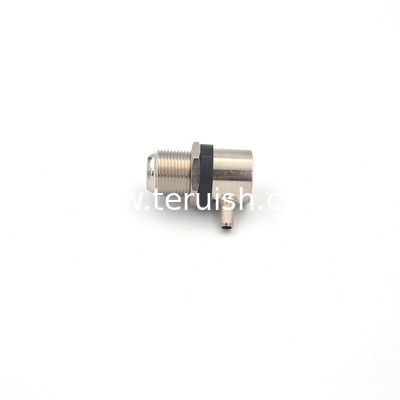

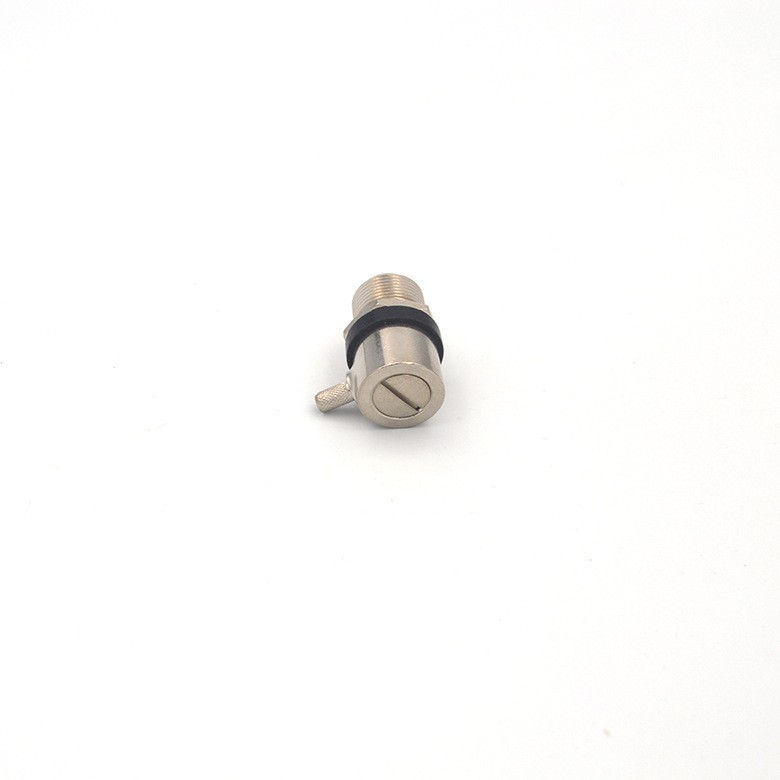

UHF Female Right Angle bulkhead RF Coaxial Connector

UHF Female Right Angle bulkhead RF Coaxial Connector

    • UHF Female Right Angle bulkhead RF Coaxial Connector
    • UHF Female Right Angle bulkhead RF Coaxial Connector
  • UHF Female Right Angle bulkhead RF Coaxial Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: UHF-KWY5

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    UHF Female Right Angle bulkhead RF Coaxial Connector

    Series UHF is a connector with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground

    control apparatus.



    Product Details



    UHF Female Right Angle bulkhead RF Coaxial Connector

    Teruilai P/N: UHF-KWY5

    RoHS Certificate: Compliant

    E;ectrical data Requirments
    Frequency range DC-300MHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦0.005mΩ
    .Outer conductor ≦0.005mΩ

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ to 125℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel-plated
    Pin contacts Beryllium-Copper Gold-plated
    Insulators Teflon
