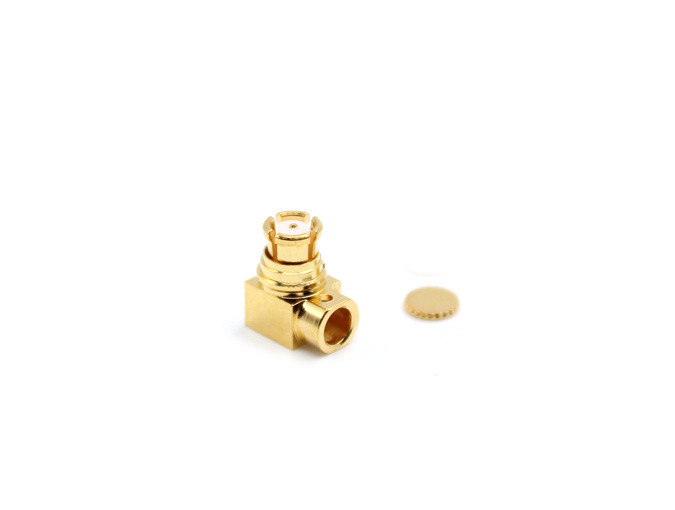

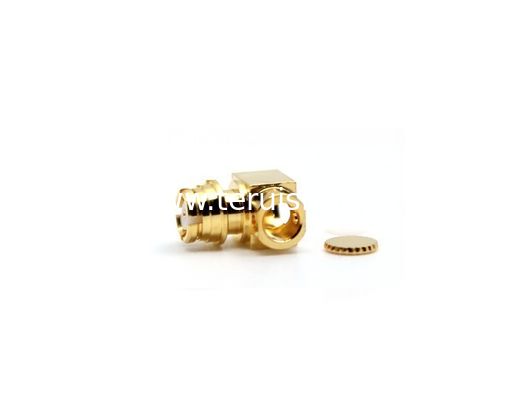

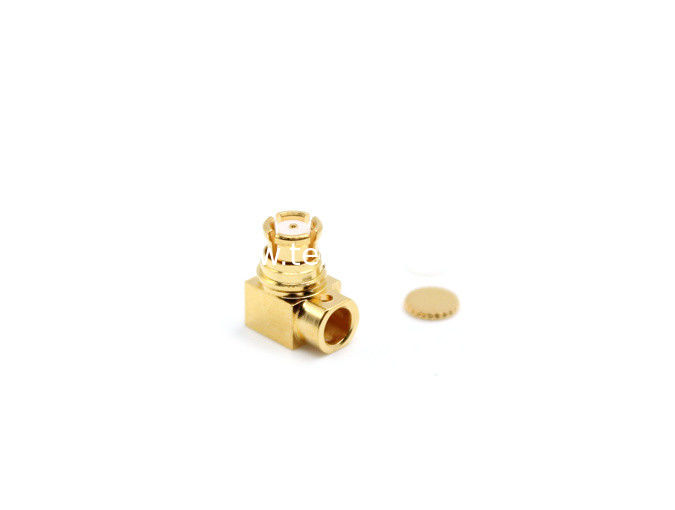

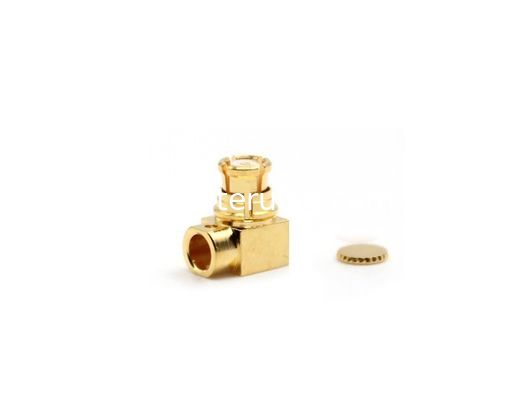

RF Connector SMP Female Right Angle for RG405 Cable

RF Connector SMP Female Right Angle for RG405 Cable

    • RF Connector SMP Female Right Angle for RG405 Cable
    • RF Connector SMP Female Right Angle for RG405 Cable
    • RF Connector SMP Female Right Angle for RG405 Cable
  • RF Connector SMP Female Right Angle for RG405 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SMP-KWB2C

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector SMP Female Right Angle for RG405 Cable

    Type SMP is one kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.


    Product Details



    SMP RF Connectors Female Right Angle for RG405 Cable

    Teruilai P/N: SMP-KWB2C

    RoHS Certificate: Compliant

    ElectricalRequirments
    Impedence50Ω
    Frequency rangeDC-18GHZ
    Dieletric withstanding voltage500V(volts RMS)
    Insulation resistance≧5000MΩ
    VSWR1.40:1
    Mechanical & EnvironmentalRequirments
    Temperature range-40℃ ~ 125℃

    Material & FinishRequirments
    Connector partsMaterialPlating
    BodyBeryllium-copperGold
    Contact PinBeryllium-copperGold
    InsulatorsTeflon
