| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | SMP-KWB2A |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Type SMP is one kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.

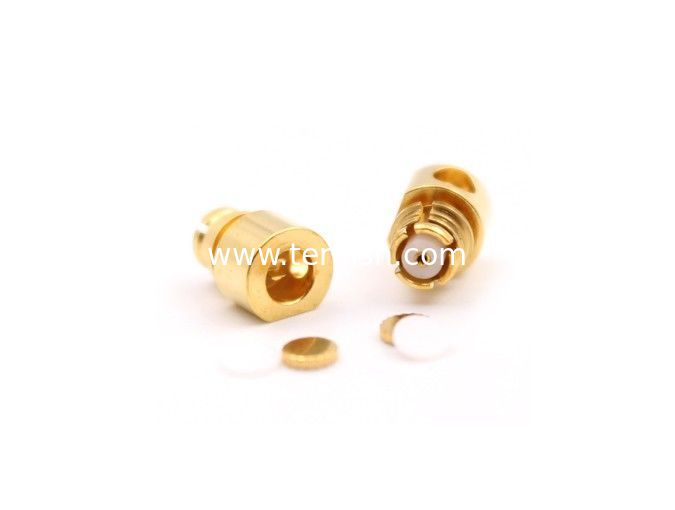

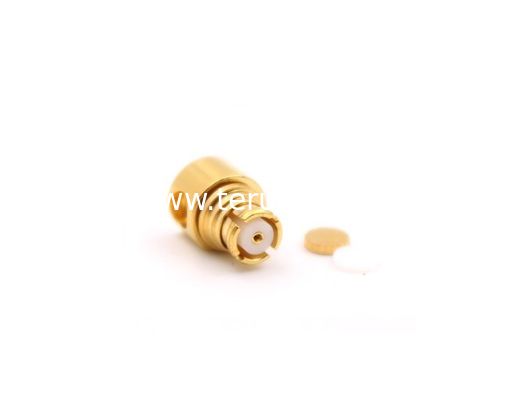

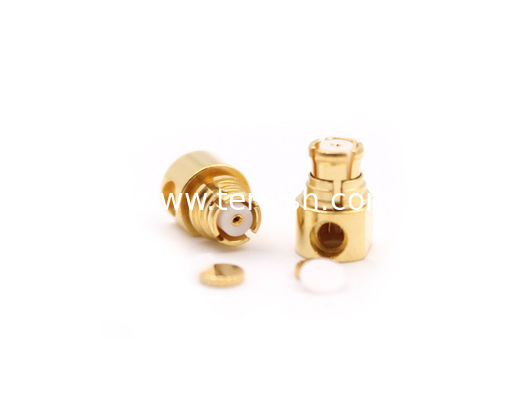

RF Connector SMP Female Right Angle for 086/RG405 cable
Teruilai P/N: SMP-KWB2A
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-18GHZ | |
| Dieletric withstanding voltage | 500V(volts RMS) | |
| Insulation resistance | ≧5000MΩ | |
| Center contact resistance | ≦3mΩ | |
| Outer contact resistance | ≦2mΩ | |
| VSWR | 1.25:1 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -45℃ ~ 85℃ | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Beryllium-copper | Gold |
| Contact Pin | Beryllium-copper | Gold |
| Insulators | Teflon | |
