TNC 50Ω female bulkhead

TNC 50Ω female bulkhead

    • TNC 50Ω female bulkhead
    • TNC 50Ω female bulkhead
    • TNC 50Ω female bulkhead
  • TNC 50Ω female bulkhead

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TNC-50KY

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

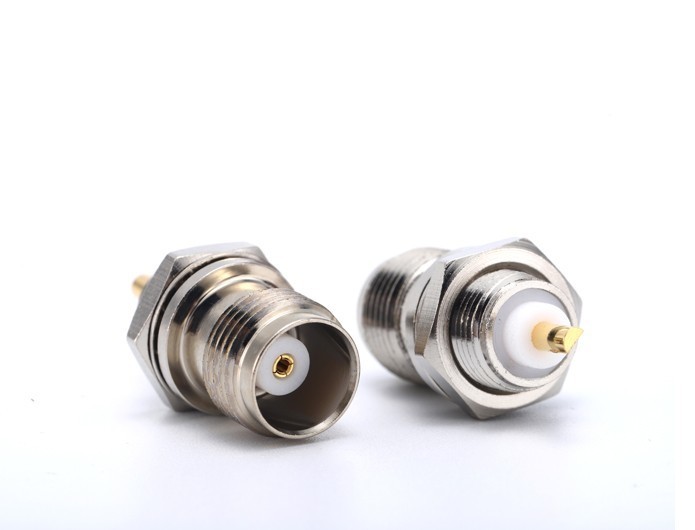

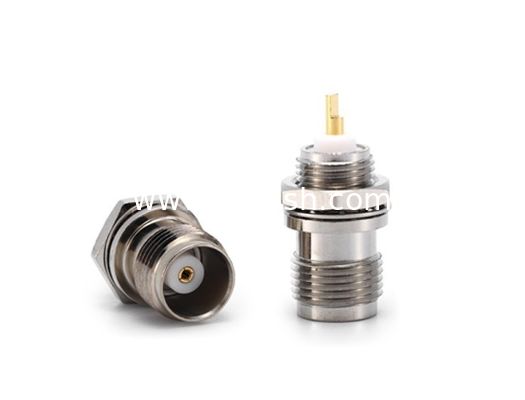

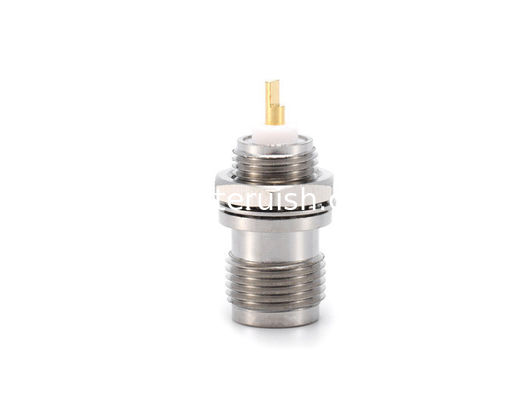

    TNC 50Ω female bulkhead

    TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.



    Product Details



    TNC 50Ω female bulkhead

    Teruilai P/N: TNC-50KY

    RoHS Certificate: Compliant

    Electrical Requirments
    Impedence 50Ω
    Dieletric withstanding voltage ≧1500V
    Woking voltage ≦500V
    Insulation resistance ≧5000MΩ

    Material & Finish Requirments
    Connector parts Material Plating
    Body Brass Nickel Plated
    Insulators Teflon
    Contact Pin Phosphor bronze Gold Plated
    Coupling Nut Brass Nickel Plated
    Gasket Phosphor bronze Gold Plated
