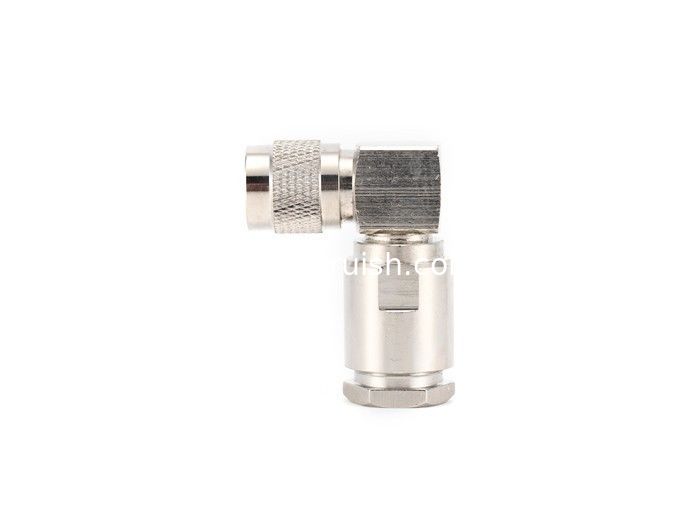

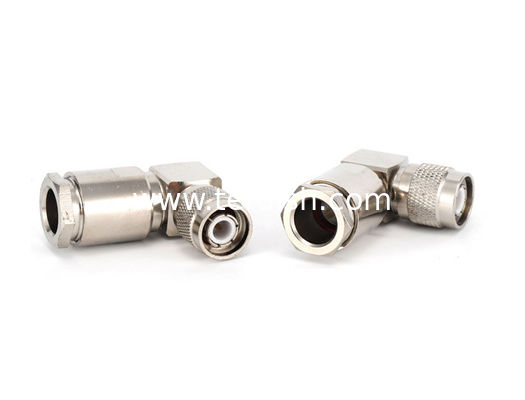

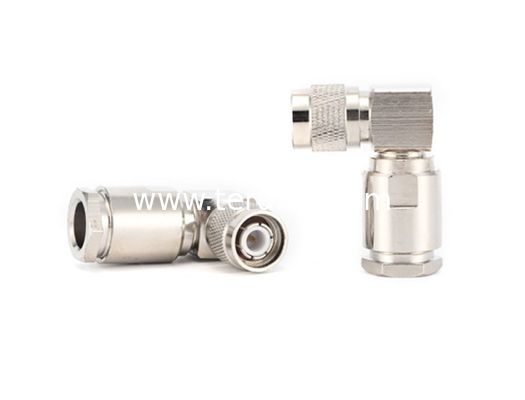

TNC male right angle Connector for LMR 400 cable clamp

TNC male right angle Connector for LMR 400 cable clamp

    • TNC male right angle Connector for LMR 400 cable clamp
    • TNC male right angle Connector for LMR 400 cable clamp
    • TNC male right angle Connector for LMR 400 cable clamp
  • TNC male right angle Connector for LMR 400 cable clamp

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TNC-JW400C

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    TNC male right angle Connector for LMR 400 cable clamp

    TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.



    Product Details



    TNC male right angle Connector for LMR 400 cable clamp

    Teruilai P/N : TNC-JW400C

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-3GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦1.5mΩ
    .Outer conductor ≦0.2mΩ
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ to 70℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel Plated
    Pin contacts Bronze gold-plated
    Insulators Teflon
    Nut Brass Nickel Plated
    Gasket Silicon rubber
    Washer Brass Nickel Plated
