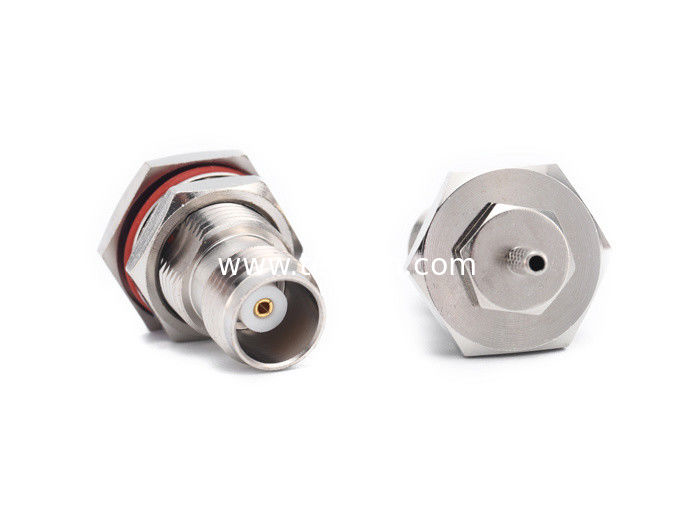

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

Product Details:

Place of Origin: China
Brand Name: Terui
Certification: RoHS
Model Number: TNC-KY3CY

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: Standard export packaging
Delivery Time: 3-10 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000000pcs per month
Contact Now
Detailed Product Description

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.



Product Details

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

Teruilai P/N: TNC-KY3CY

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-3GHZ
Dieletric withstanding voltage 1500V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦1.5mΩ
.Outer conductor ≦0.2mΩ
VSWR ≦1.3

Mechanical data Requirments
Durability (matings) ≧500

Environmental data Requirments
Temperature range -40℃ to 70℃

Material data Requirments
Connector parts Material Plating
Body Brass Nickel Plated
Pin contacts Bronze gold-plated
Insulators Teflon
Nut Brass Nickel Plated
Gasket Silicon rubber
Washer Brass Nickel Plated
