| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | TNC-KWHD |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.

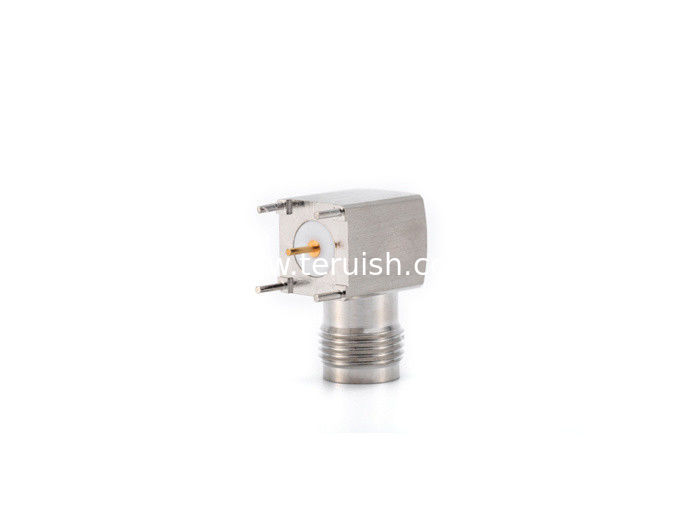

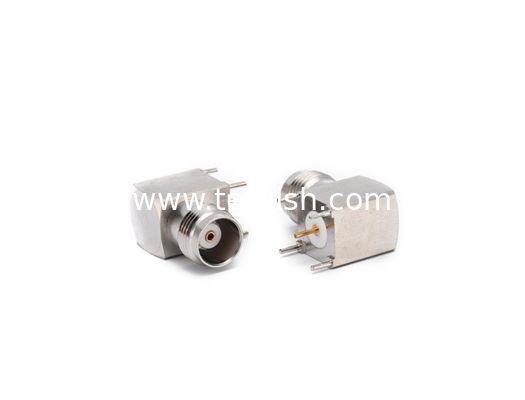

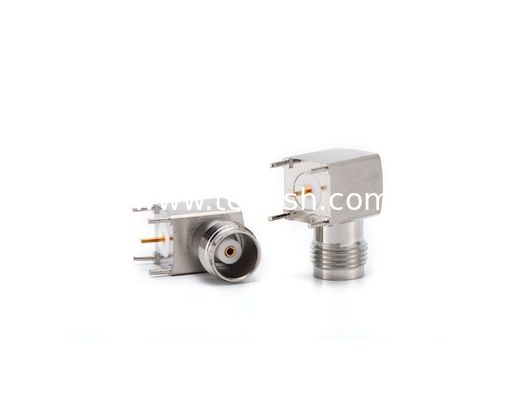

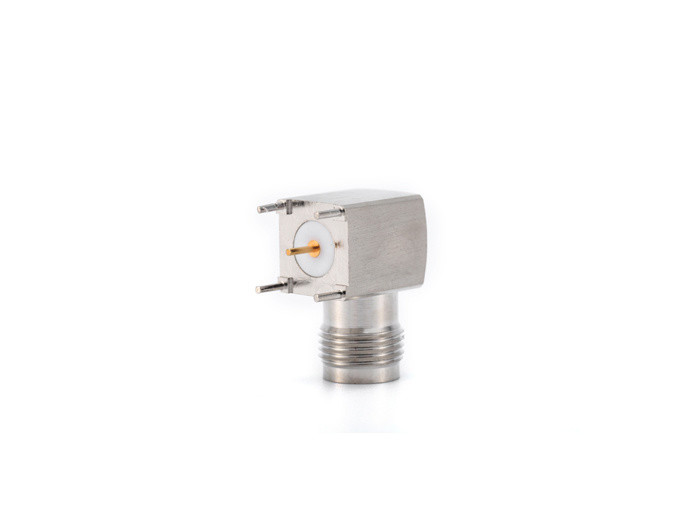

TNC Female Right Angle RF Coaxial Connector for PCB mount
Teruilai P/N: TNC-KWHD
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1500V(volts RMS) | |
| Center contact resistance | ≦1.5mΩ | |
| Outer contact resistance | ≦0.2mΩ | |
| Insulation resistance | ≧5000MΩ | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -55℃ - 125℃ | |
| RoHs Compliant | ||
| Durability(matings) | >500 cycles | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel Plated |
| Insulators | Teflon | |
| Contact Pin | Phosphor Bronze | Gold Plated |
| Ferrule | Coppe | Nickel Plated |
