Series SHV is coaxial high voltage connector with 3.5KV (RMS) or 5KV DC. The connector is widely used in nuclear devices and test equipment . Voltage is suitable for matching mated or unmatched conditions.

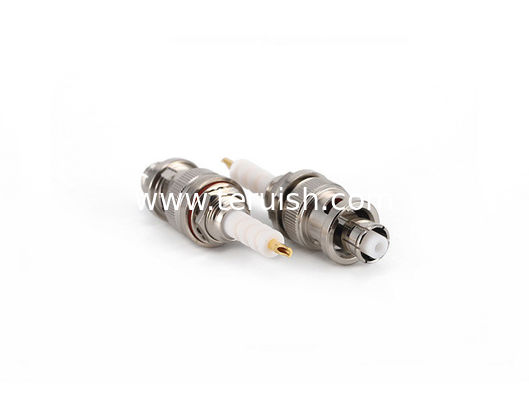

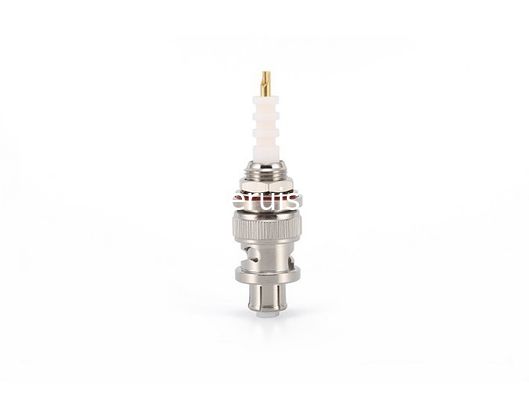

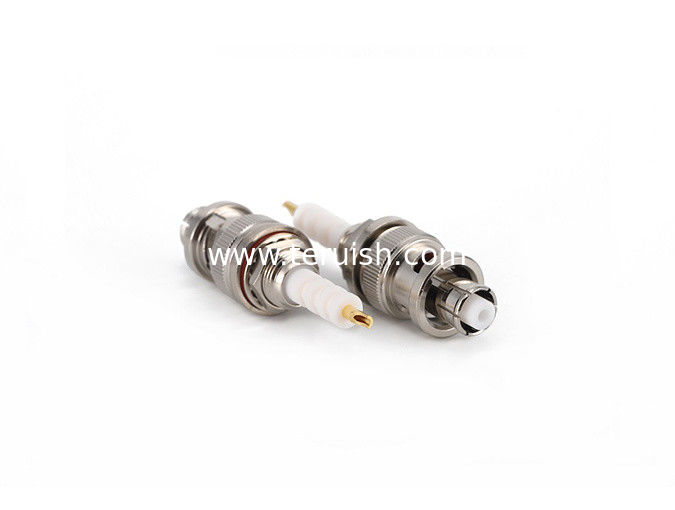

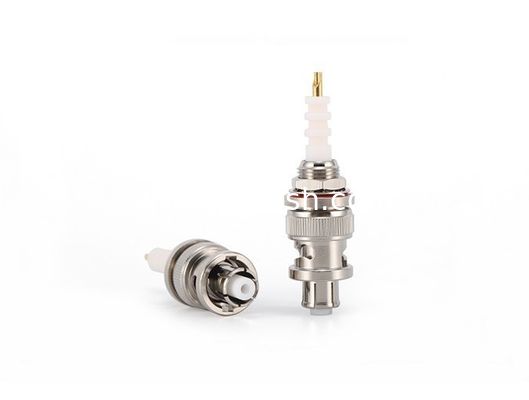

SHV Female Bulkhead RF Connector
Teruilai P/N: SHV-KYD1
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-300Mhz | |
| Dieletric withstanding voltage | 5.0KV rms,50Hz(depending on cable) | |
| Insulation Resistance | ≧1TΩ | |
| Characteristic impedance | 50Ω | |
| Contact resistance | ||
| Center conductor | ≦2mΩ | |
| Outer conductor | ≦1.5mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Coupling nut | Brass | Suco plated |
| Pin Contact | Bronze | Gold |
| Insulators | PTFE | |
