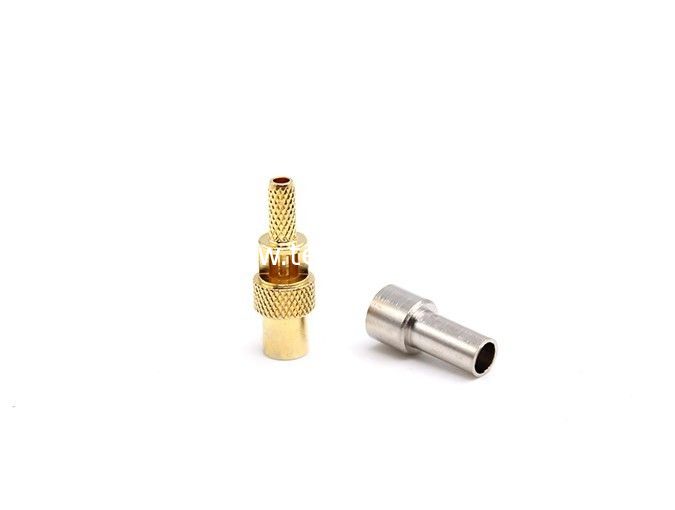

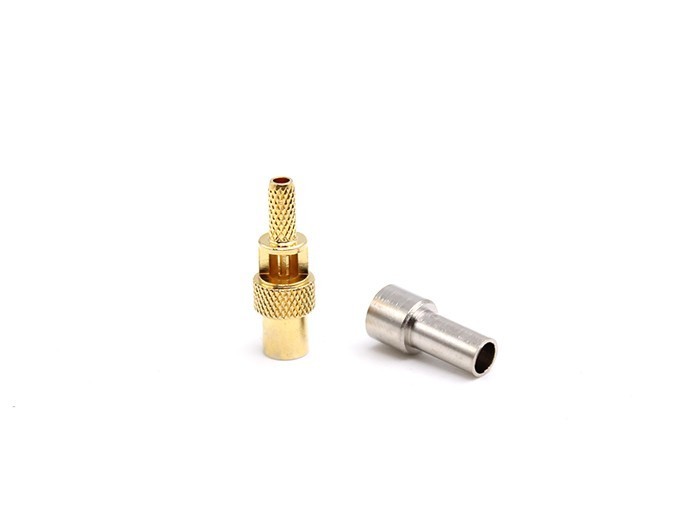

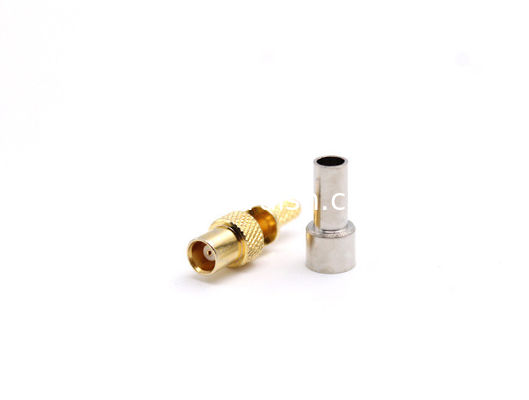

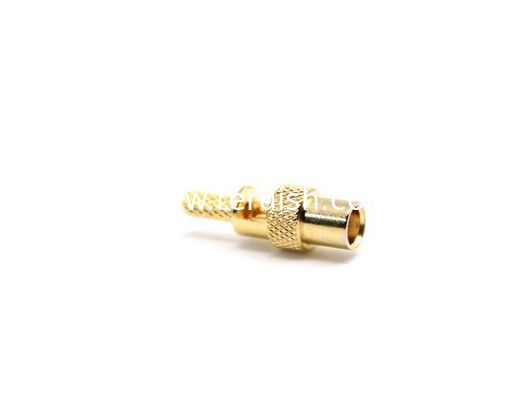

RF Connector MCX Female for RG316 Cable

RF Connector MCX Female for RG316 Cable

    • RF Connector MCX Female for RG316 Cable
    • RF Connector MCX Female for RG316 Cable
    • RF Connector MCX Female for RG316 Cable
  • RF Connector MCX Female for RG316 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: MCX-K3CA

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector MCX Female for RG316 Cable

    Type MCX is one kind of RF coaxial conectors with miniature snap-on coupling mechanism, which has the characteristics of light weight,

    small size, concise structure and easy to use, they are sure to fit most applications where space, weight, performance and easey to assembly

    are required in RF circuits of fixed communication instruments.



    Product Details



    RF Connector MCX Female for RG316 Cable

    Teruilai P/N: MCX-K3CA

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-6GHZ(50Ω)
    Dieletric withstanding voltage 750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧1000MΩ
    Contact Resistance
    .Center conductor ≦5mΩ
    .Outer conductor ≦2.5mΩ
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -65℃ to+155℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Gold plated
    spring contacts Beryllium copper Gold plated
    Insulators teflon
    Pin contacts Brass Gold plated
    Crimp ferrules Brass Gold plated
