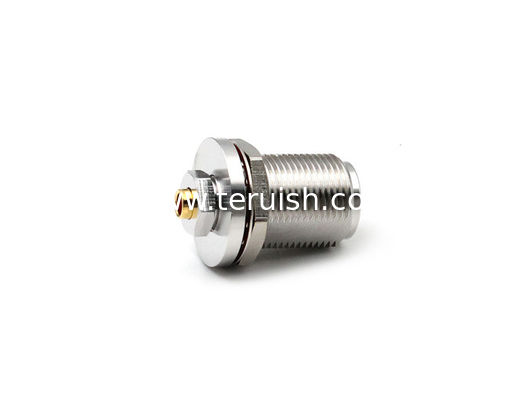

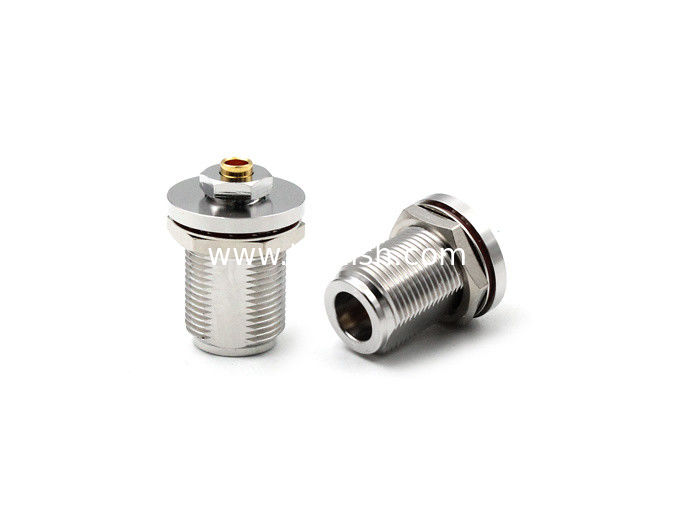

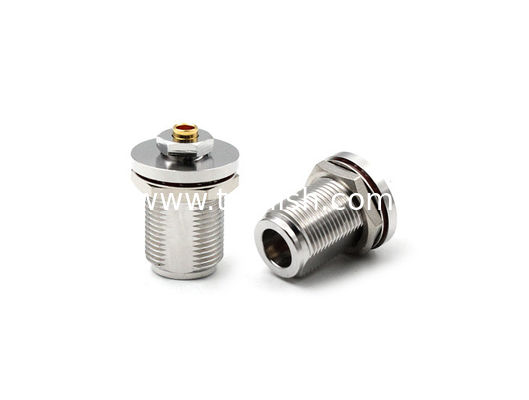

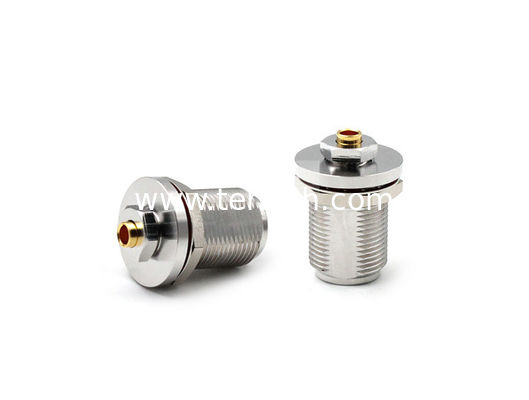

N female BUlkhead for RG402/.141 Cable

N female BUlkhead for RG402/.141 Cable

    • N female BUlkhead for RG402/.141 Cable
    • N female BUlkhead for RG402/.141 Cable
    • N female BUlkhead for RG402/.141 Cable
  • N female BUlkhead for RG402/.141 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: N-KYB3Z

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    N female BUlkhead for RG402/.141 Cable

    Micro RF Coaxial Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. Micro RF Coaxial Connectors have great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.

    Product Details



    N female BUlkhead for RG402/.141 Cable

    Teruilai P/N: N-KYB3Z

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-6GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦1.0mΩ
    .Outer conductor ≦1.0mΩ
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -65℃ ~+165℃

    Material data Requirments
    Connector parts Material Plating
    Pin contacts Bronze Gold
    Outer conductor Brass Nickel
    Insulators PTFE
