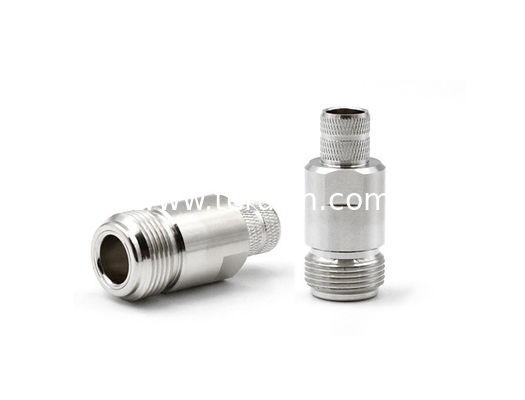

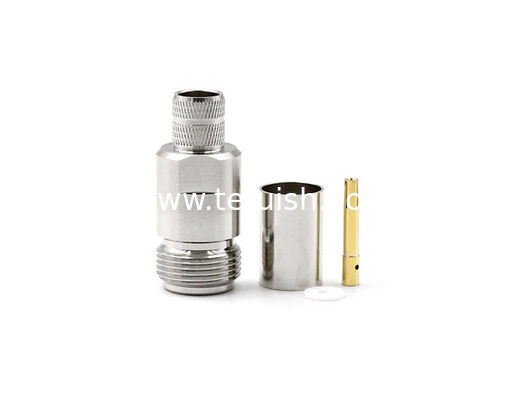

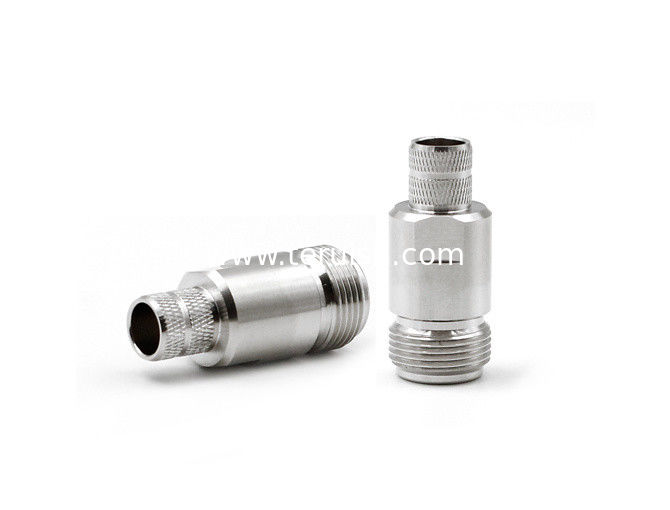

RF Connector N Female for LMR400 Cable, Crimp

RF Connector N Female for LMR400 Cable, Crimp

    • RF Connector N Female for LMR400 Cable, Crimp
    • RF Connector N Female for LMR400 Cable, Crimp
    • RF Connector N Female for LMR400 Cable, Crimp
  • RF Connector N Female for LMR400 Cable, Crimp

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: N-k400Y-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector N Female for LMR400 Cable, Crimp

    N connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.



    Product Details



    RF Connector N Male for LMR400 Cable, Crimp

    Teruilai P/N: N-k400Y-1

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-6GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    VSWR 1.30:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -65℃ ~+165℃

    Material data Requirments
    Connector parts Material Plating
    Pin contacts Bronze Gold
    Body Brass Nickel
    Coupling nut Brass Nickel
    Insulators PTFE
