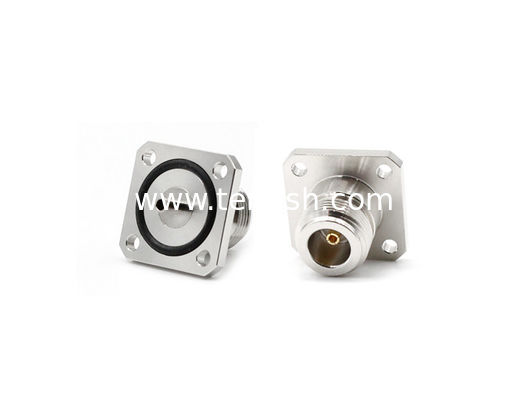

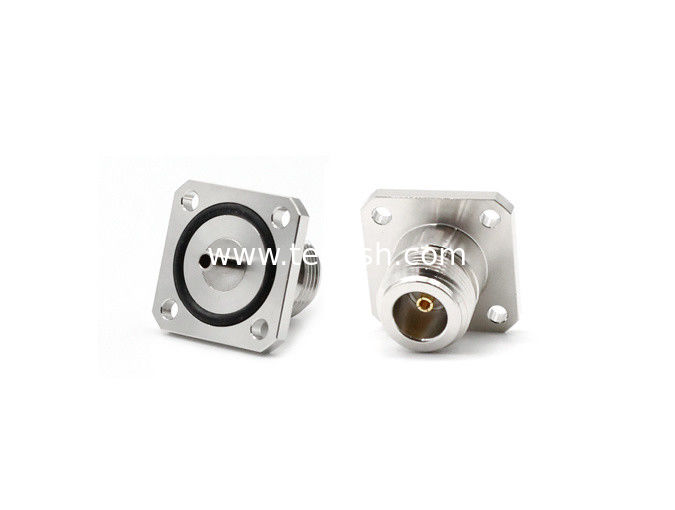

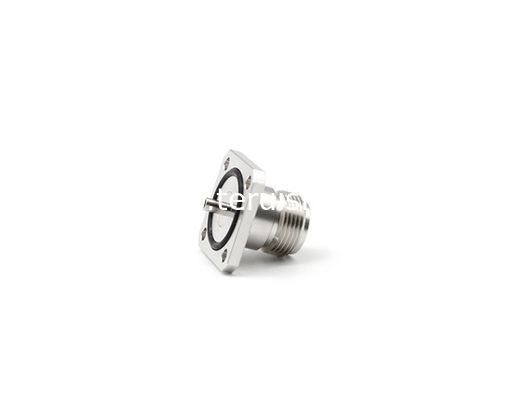

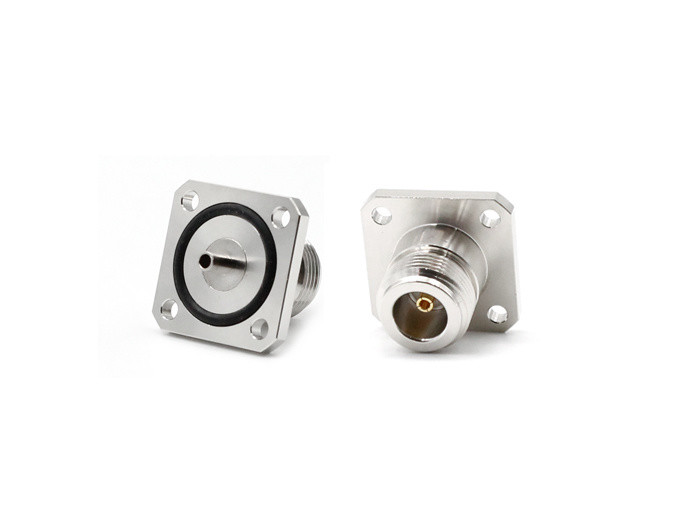

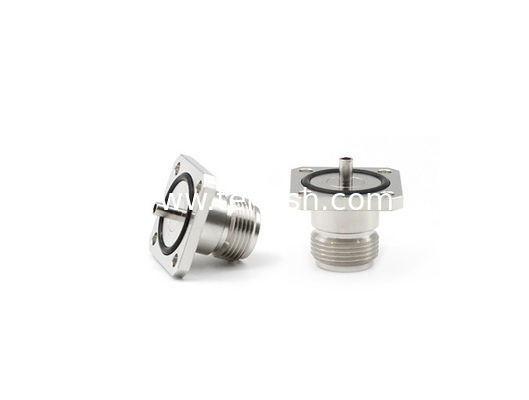

RF Connector N Female Flange for .086/RG405 Cable

RF Connector N Female Flange for .086/RG405 Cable

    • RF Connector N Female Flange for .086/RG405 Cable
    • RF Connector N Female Flange for .086/RG405 Cable
    • RF Connector N Female Flange for .086/RG405 Cable
  • RF Connector N Female Flange for .086/RG405 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: N-KFB2TA

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Connector N Female Flange for .086/RG405 Cable

    TYPE N are very popular screw-coupling middle-power coaxial connectors, which has the excellent peformance of greet vbration-proof,high reliability, superior electrical and mechanical properties, They are widely used for communication applications where tration resistance and harsh environment is required. The interface mating dimensions and technical characterstics are according to the standard MIL-C-39012 IEC60169-16AND CECC22210



    Product Details

    RF Connector N female Flange Mount

    Teruilai P/N:N-KFB2TA

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-6GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    VSWR ≦1.2

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to 165℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel-plated
    Pin contacts Bronze Gold
    Insulators Teflon
