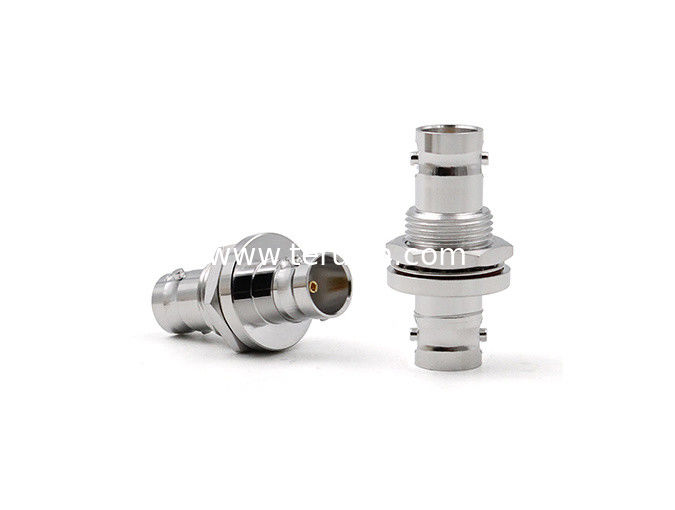

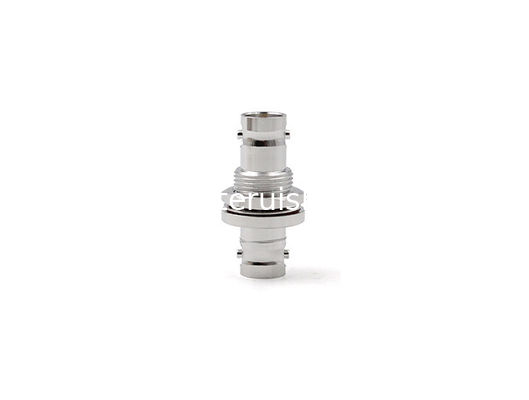

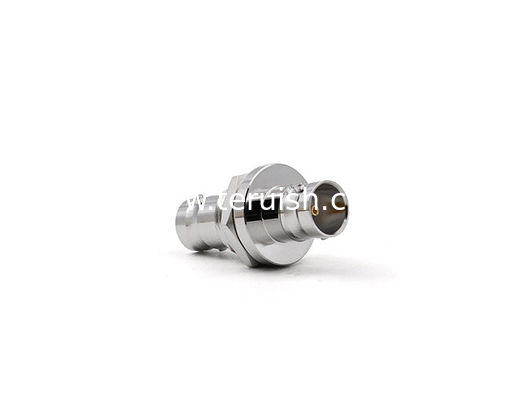

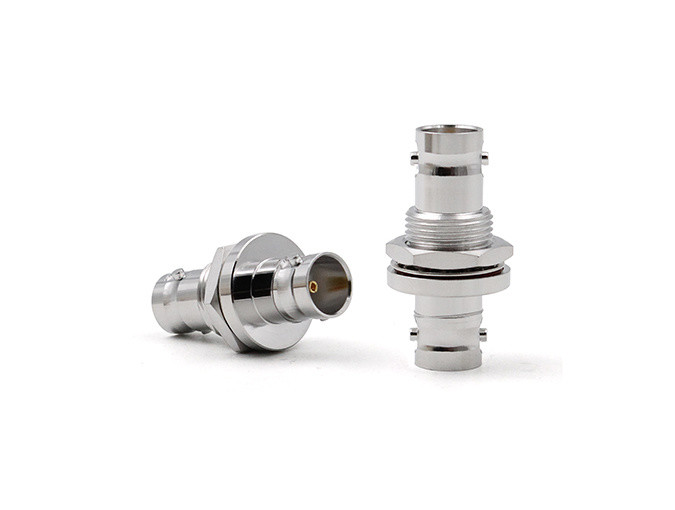

75Ω RF Adapter BNC double female bulkhead

75Ω RF Adapter BNC double female bulkhead

    • 75Ω RF Adapter BNC double female bulkhead
    • 75Ω RF Adapter BNC double female bulkhead
    • 75Ω RF Adapter BNC double female bulkhead
  • 75Ω RF Adapter BNC double female bulkhead

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: BNC-75KYKM-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    75Ω RF Adapter BNC double female bulkhead

    Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick

    connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.



    Product Details



    75Ω RF Adapter BNC double female bulkhead



    Teruilai P/N: BNC-75KYKM-F



    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range 0-2GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 75Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦1.5mΩ
    .Outer conductor ≦1mΩ

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ to+70℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel plated
    Pin contacts Brass Gold
    Insulators teflon
