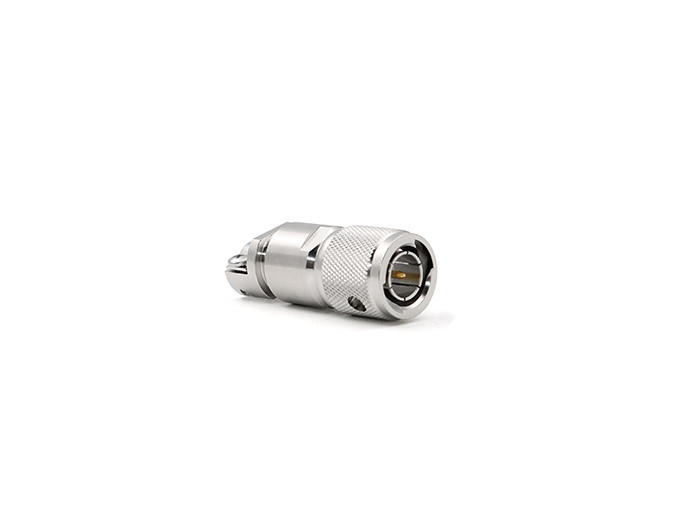

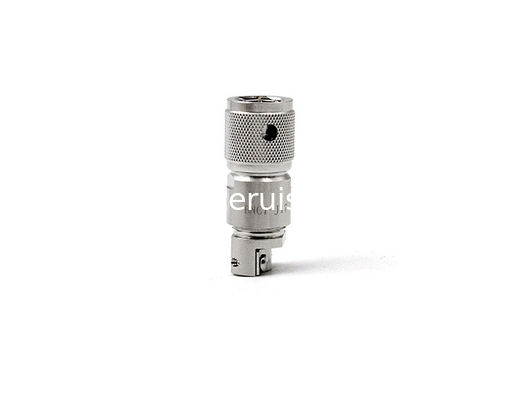

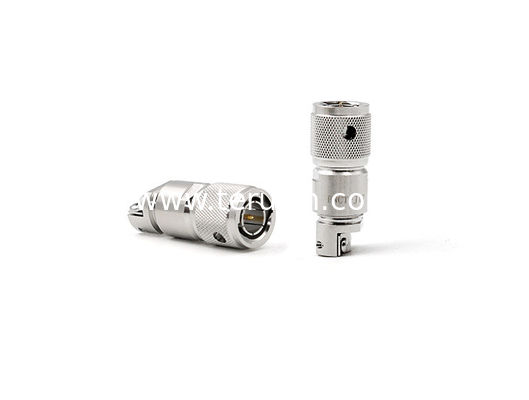

BNCT male connecotor

BNCT male connecotor

    • BNCT male connecotor
    • BNCT male connecotor
    • BNCT male connecotor
  • BNCT male connecotor

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: BNCT-J17

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    BNCT male connecotor

    Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick

    connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.



    Product Details



    BNCT male connecotor

    Teruilai P/N: BNCT-J17

    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range 0-4GHZ
    Dieletric withstanding voltage 1000V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦3mΩ
    .Outer conductor ≦2mΩ
    VSWR ≦1.20

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to+125℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass NIickel-plated
    Pin contacts Bronze Gold
    Insulators teflon
