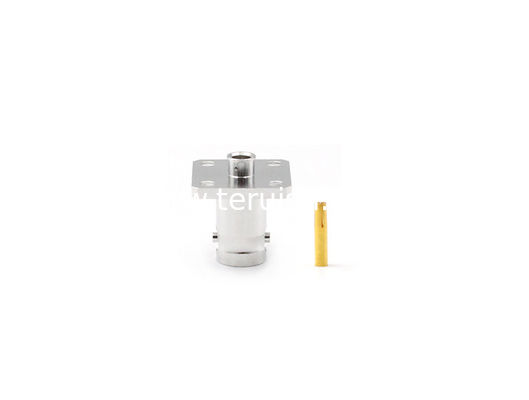

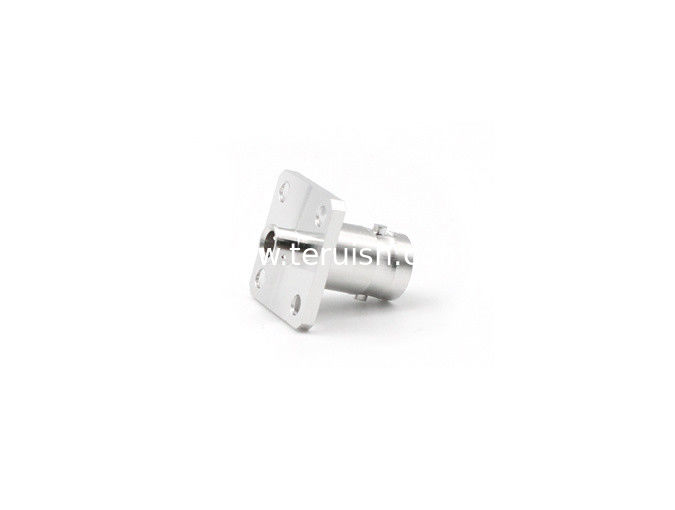

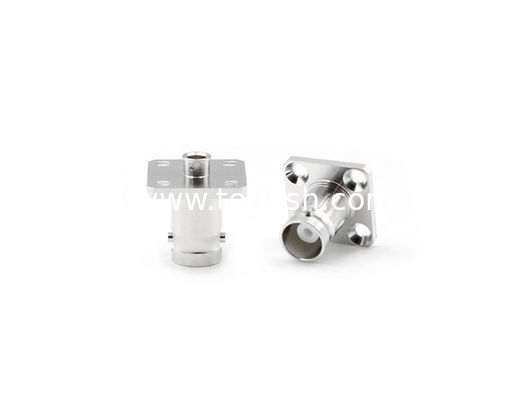

BNC Female Flange Connector For .141 Cable

BNC Female Flange Connector For .141 Cable

    • BNC Female Flange Connector For .141 Cable
    • BNC Female Flange Connector For .141 Cable
    • BNC Female Flange Connector For .141 Cable
  • BNC Female Flange Connector For .141 Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: BNC-KFB3

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    BNC Female Flange Connector For .141 Cable

    Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick connect/disconnect, high reliability,

    they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.

    Product Details



    BNC Female Flange Connector For .141 Cable



    Teruilai P/N:BNC-KFB3



    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range 0-4GHZ
    Dieletric withstanding voltage 1000V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦1.5mΩ
    .Outer conductor ≦0.2mΩ

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to+125℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel plated
    Pin contacts Bronze gold
    Insulators teflon
