| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | BNC-KB2 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick connect/disconnect, high reliability,
they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.

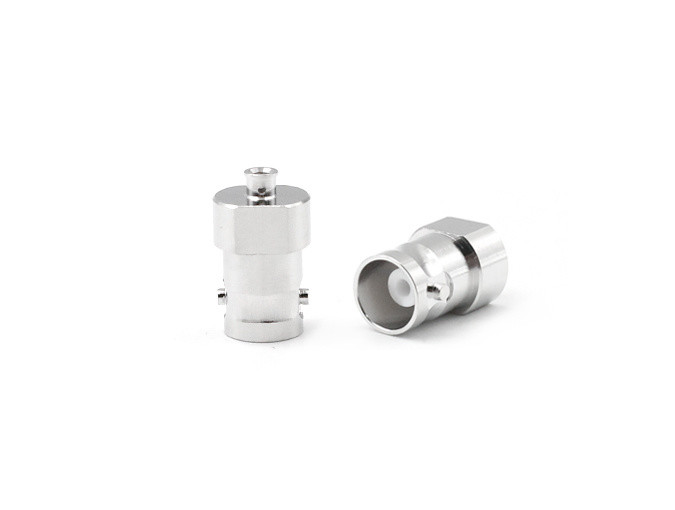

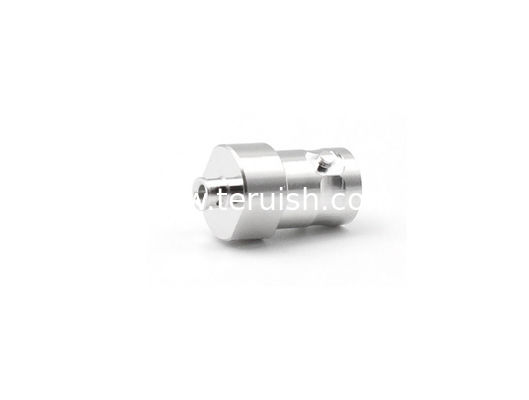

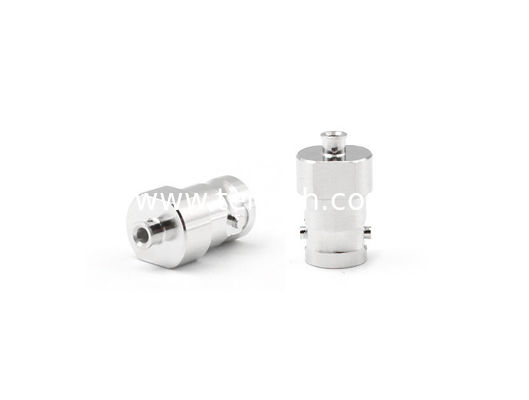

BNC Female Connector for .086/RG405 Cable
Teruilai P/N:BNC-KB2
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-4GHZ | |
| Dieletric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to+125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | gold |
| Insulators | teflon | |
