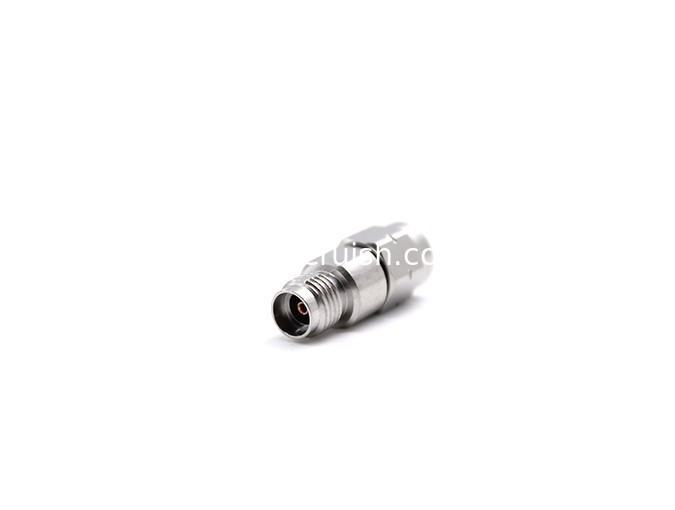

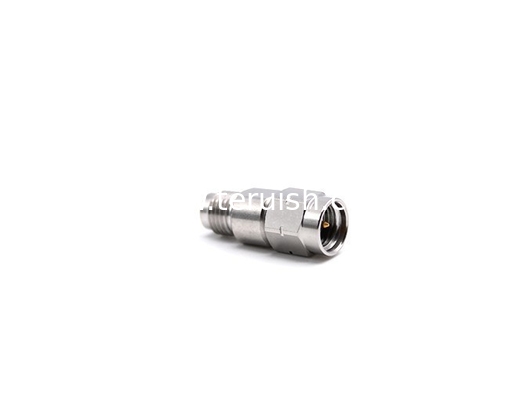

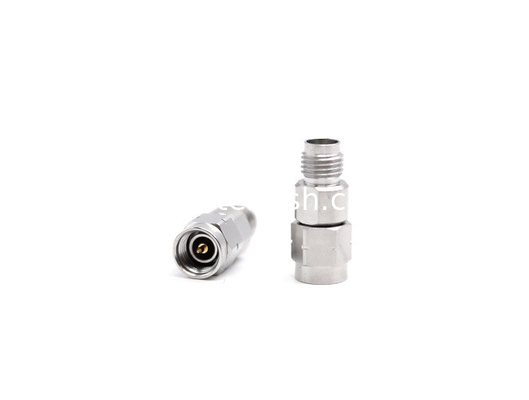

Precision Adapter 3.5 Male to 3.5 Female

Precision Adapter 3.5 Male to 3.5 Female

    • Precision Adapter 3.5 Male to 3.5 Female
    • Precision Adapter 3.5 Male to 3.5 Female
    • Precision Adapter 3.5 Male to 3.5 Female
  • Precision Adapter 3.5 Male to 3.5 Female

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 3.5-JKG

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Precision Adapter 3.5 Male to 3.5 Female

    Series 3.5mm Precision adapter can reach the frequency up to DC 26.5Ghz. They are the guarantee for the connection between different seriels of RF coaxial connectors ,widely used in the modem precision measurement and microwave communication equipment.



    Product Details



    Precision Adapter 3.5 Male to 3.5 Female



    Teruilai P/N: 3.5-JKG



    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-26.5Ghz
    Characteristic impedance 50Ω
    VSWR ≦1.25:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to 165℃

    Material data Requirments
    Connector parts Material Plating
    Body stainless steel Passivated
    Pin contacts Beryllium-Copper Gold
    Insulators PEI
