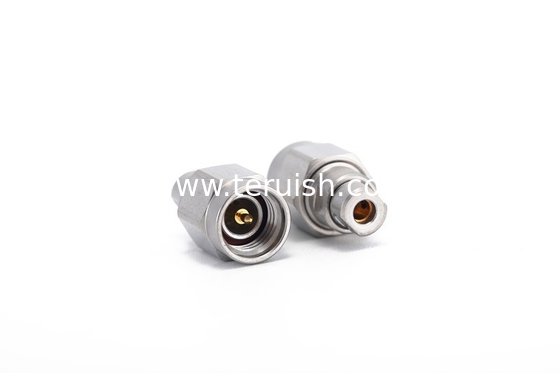

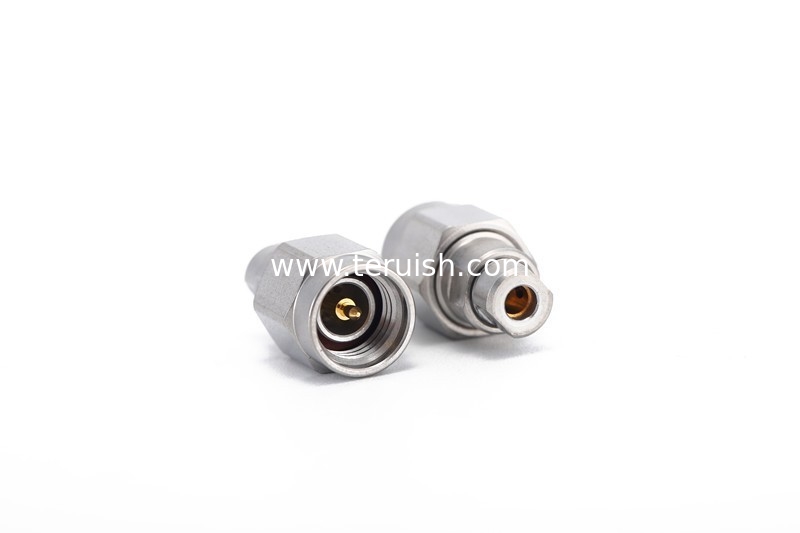

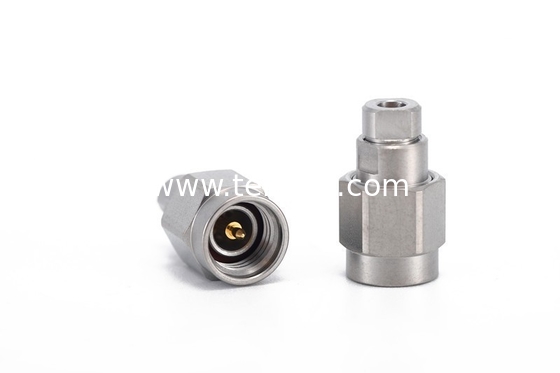

3.5mm male connector for Gore 3506 cable

3.5mm male connector for Gore 3506 cable

    • 3.5mm male connector for Gore 3506 cable
    • 3.5mm male connector for Gore 3506 cable
    • 3.5mm male connector for Gore 3506 cable
  • 3.5mm male connector for Gore 3506 cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 3.5-J3506G

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    3.5mm male connector for Gore 3506 cable

    Series 3.5mm microwave Connector is one kind of precision milimeter wave connector widely used in the testing system, aerospace field, microwave weapon systems. The frequency ranges from DC to 26.5 Ghz



    Product Details



    3.5mm male connector for Gore 3506 cable



    Teruilai P/N: 3.5-J3506G



    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-26.5Ghz
    Characteristic impedance 50Ω
    VSWR ≦1.25:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to +85℃

    Material data Requirments
    Connector parts Material Plating
    Body stainless steel (Su303),passivated
    Pin contacts Beryllium-Copper gold-plated
    Insulators PEI
