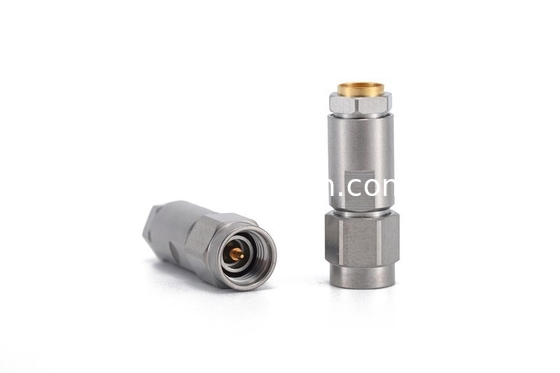

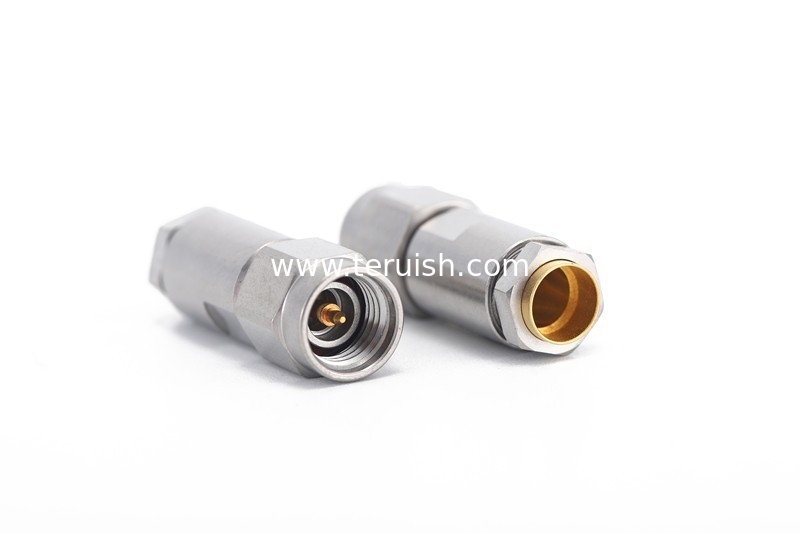

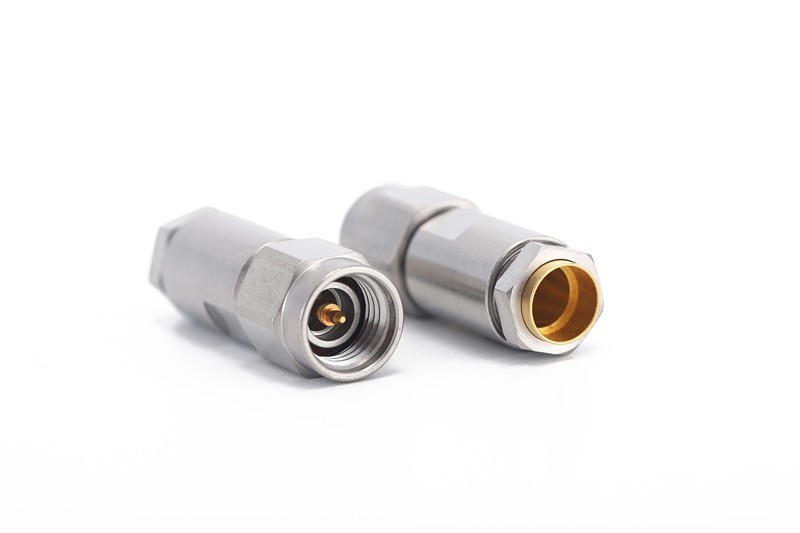

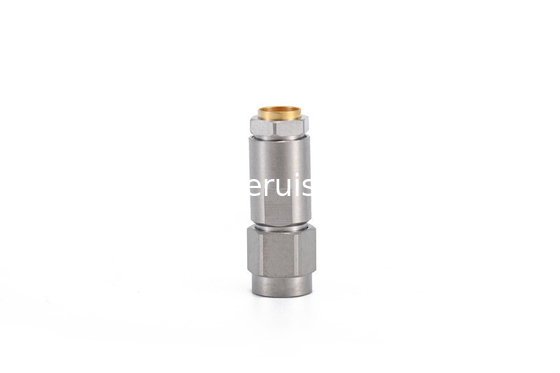

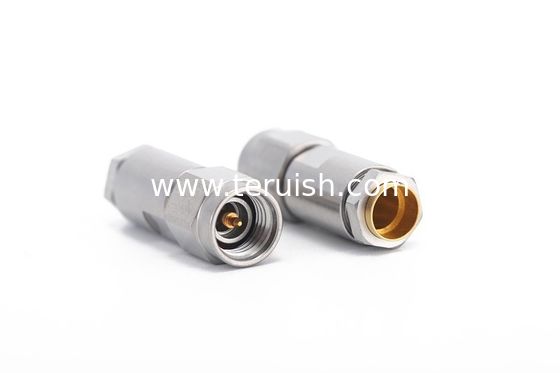

3.5mm male wave connector for Gore 3449 cable

3.5mm male wave connector for Gore 3449 cable

    • 3.5mm male wave connector for Gore 3449 cable
    • 3.5mm male wave connector for Gore 3449 cable
    • 3.5mm male wave connector for Gore 3449 cable
  • 3.5mm male wave connector for Gore 3449 cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 3.5-J3449G

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    3.5mm male wave connector for Gore 3449 cable

    Series 3.5mm microwave Connector is one kind of precision milimeter wave connector widely used in the testing system, aerospace field, microwave weapon systems. The frequency ranges from DC to 18Ghz


    Product Details


    3.5mm male wave connector for Gore 3449 cable

    Teruilai P/N: 3.5-J3449G

    RoHS Certificate: Compliant

    Electrical dataRequirments
    Frequency rangeDC-18GHZ
    Characteristic impedance50Ω
    VSWR≦1.25:1

    Mechanical dataRequirments
    Durability (matings)≧500

    Environmental dataRequirments
    Temperature range-45℃ to +125℃

    Material dataRequirments
    Connector partsMaterialPlating
    BodyStainless steel (Su303),passivated
    Pin contactsBeryllium-Coppergold-plated
    InsulatorsPEI
