| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | 3.5-JYD1 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Series 3.5mm microwave Connector is one kind of precision milimeter wave connector widely used in the testing system, aerospace field, microwave weapon systems. The frequency ranges from DC to 26.5 Ghz

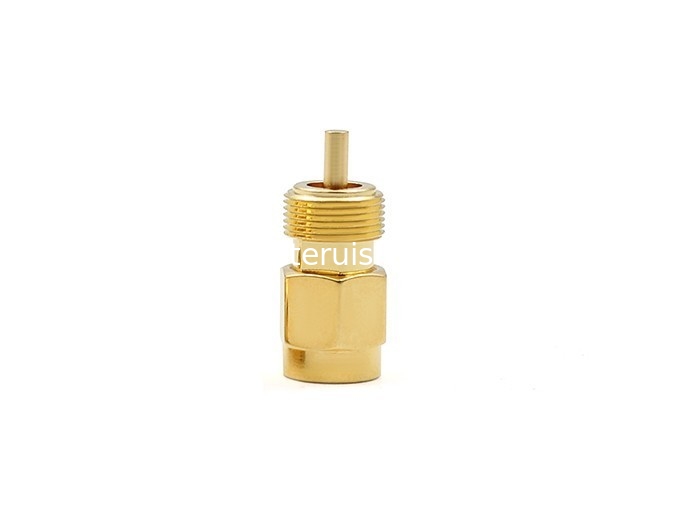

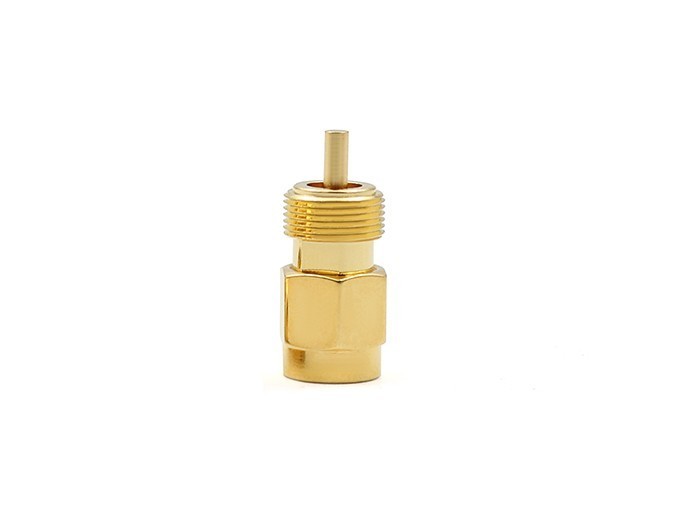

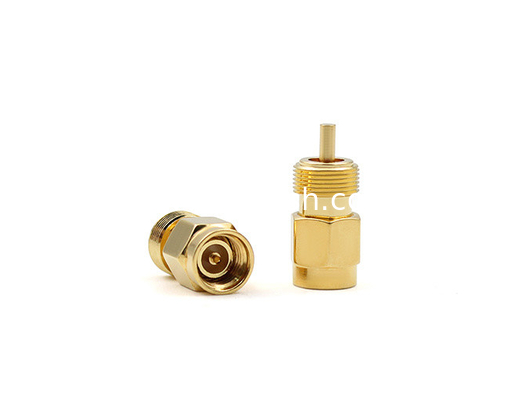

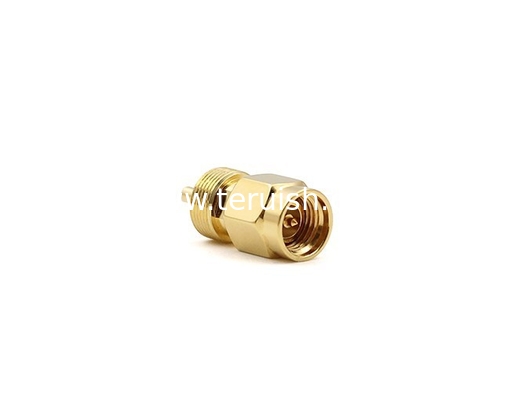

3.5 Male Bulkhead Connector for Terminal
Teruilai P/N: 3.5-JYD1
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-18GHz | |
| Center Contact Resistance | ≦6MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| VSWR | ≦1.34 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
| coupling nut | Brass | Gold |
