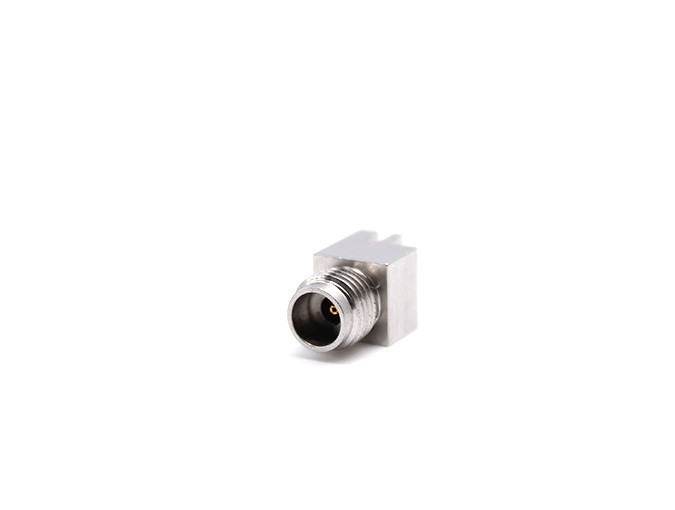

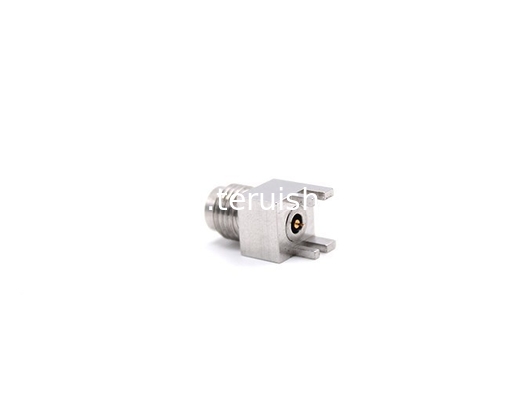

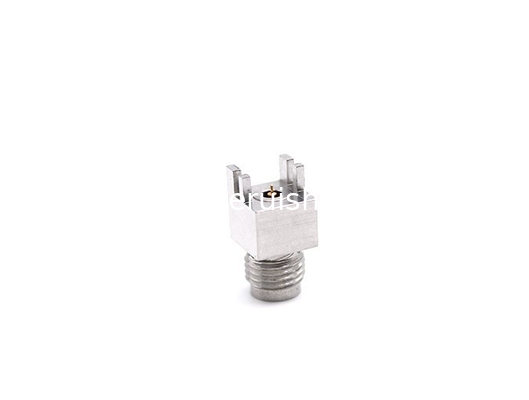

RF Coaxial Connector Stainless Steel 2.4 female PCB Mount

RF Coaxial Connector Stainless Steel 2.4 female PCB Mount

    • RF Coaxial Connector Stainless Steel 2.4 female PCB Mount
    • RF Coaxial Connector Stainless Steel 2.4 female PCB Mount
    • RF Coaxial Connector Stainless Steel 2.4 female PCB Mount
  • RF Coaxial Connector Stainless Steel 2.4 female PCB Mount

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 2.4-KHDG

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Coaxial Connector Stainless Steel 2.4 female PCB Mount

    TYPE 2.4MM is one kind precision micro-wave connector, up to 50GHZ , widely used in the testing system, aerospace field, microwave weapon systems. It has several types such as bulkhead, 2holes ,4 holes; It's also available for semi-regid and flexible cables .

    Product Details



    RF Coaxial Connector Stainless Steel 2.4 female PCB Mount



    Teruilai P/N: 2.4-KHDG



    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-50GHZ
    Dieletric withstanding voltage ≧750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧3000MΩ
    VSWR 1.3:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to 85℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium-Copper Gold
    Insulators PEI
