| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | 2.4-JFD1G |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
TYPE 2.4MM is one kind precision micro-wave connector, up to 50GHZ , widely used in the testing system, aerospace field, microwave weapon systems. It has several types such as bulkhead, 2holes ,4 holes; It's also available for semi-regid and flexible cables .

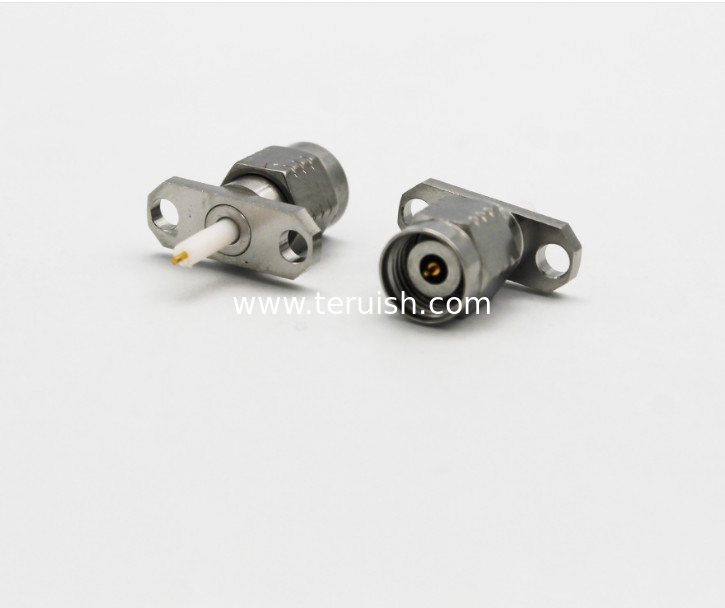

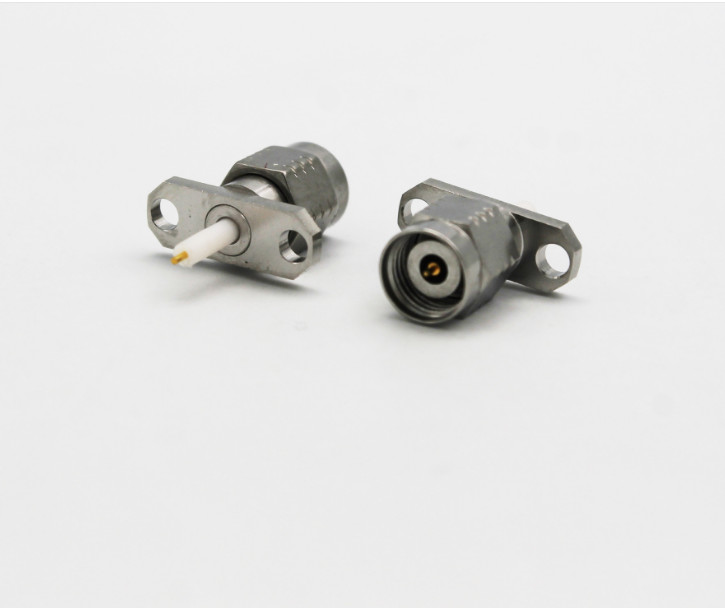

Precision 2.4mm male flange connector terminal
Teruilai P/N: 2.4-JFD1G
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation resistance | ≧3000MΩ | |
| Contact Resistance | ||
| Center conductor | ≦4.0mΩ | |
| Outer conductor | ≦2.0mΩ | |
| VSWR | ≦1.3:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel (Su303),passivated | |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
