| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | 2.92-KFD0.3AG |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
2.92mm Precision Microwave Connectors Panel Mount also named K connector, developed from series SMA connector.
2.92mm Precision Microwave Connectors Panel Mount has the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.

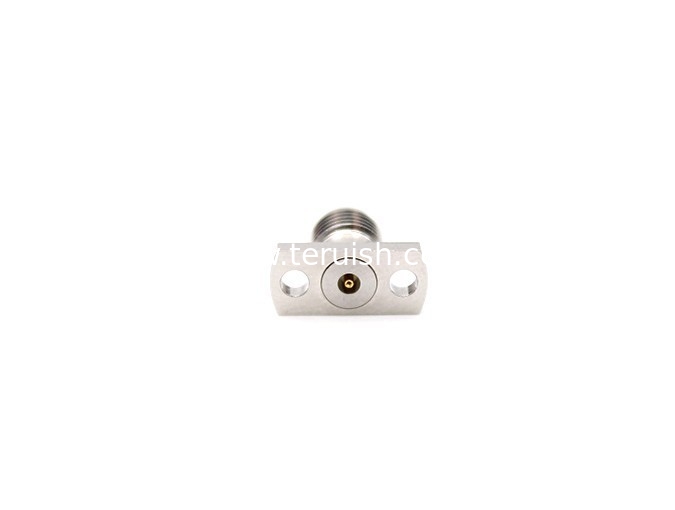

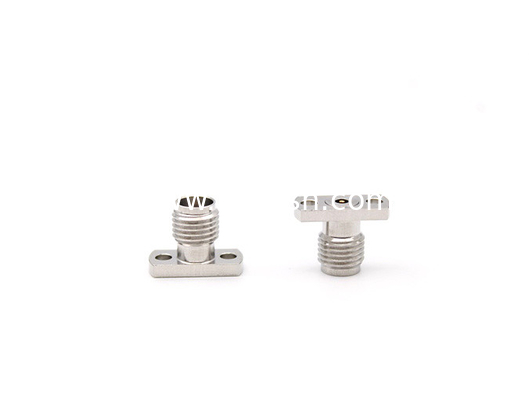

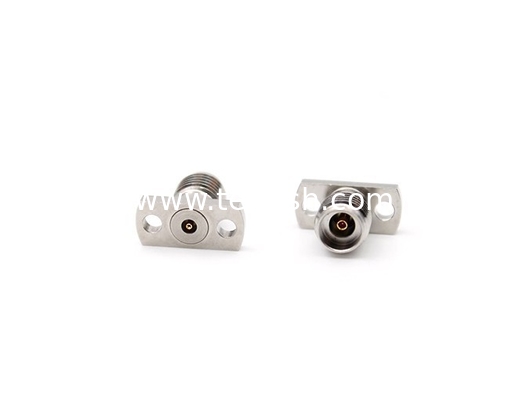

RF Coaxial Connector 2.92mm female Flange Mount
Teruilai P/N: 2.92-KFD0.3AG
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
