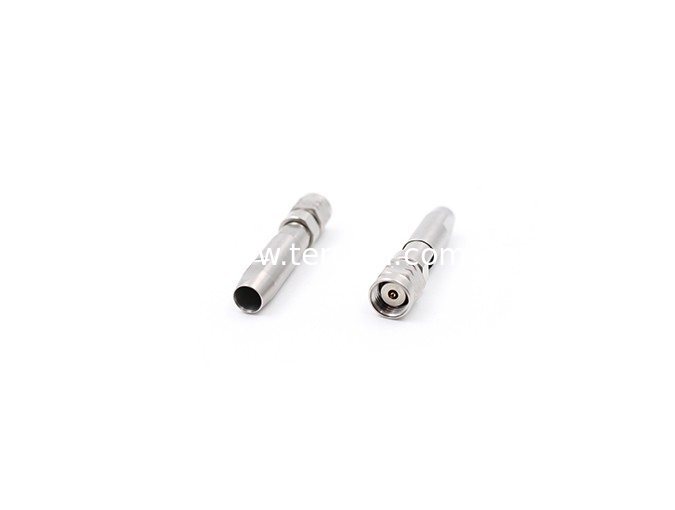

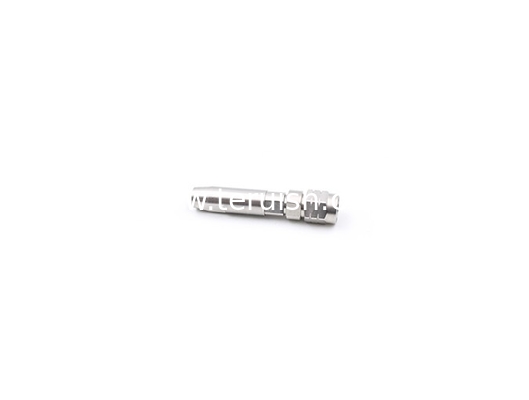

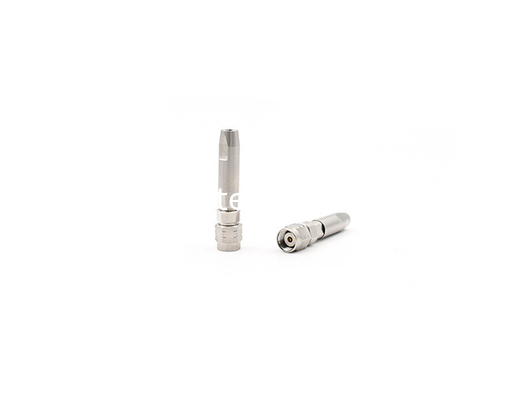

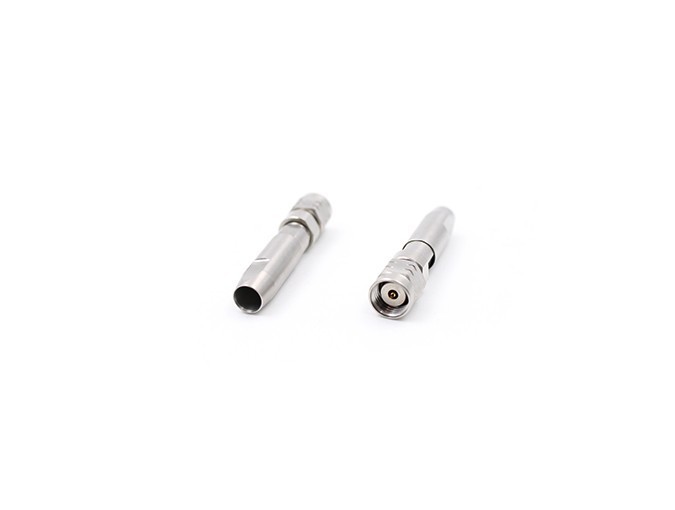

Milimeter wave connector 1.85mm male Stainless steel

Milimeter wave connector 1.85mm male Stainless steel

    • Milimeter wave connector 1.85mm male Stainless steel
    • Milimeter wave connector 1.85mm male Stainless steel
    • Milimeter wave connector 1.85mm male Stainless steel
  • Milimeter wave connector 1.85mm male Stainless steel

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 1.85-J3506G-KJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Milimeter wave connector 1.85mm male Stainless steel

    1.85mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.
    They are widely used in testing system, aerospace field, microwave weapon systems.



    Product Details



    Milimeter wave connector 1.85mm male Stainless steel



    Teruilai P/N: 1.85-J3506G-KJ



    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range DC-65GHZ
    Dieletric withstanding voltage ≧750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    VSWR 1.40:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium-Copper Gold
    Insulators PEI
