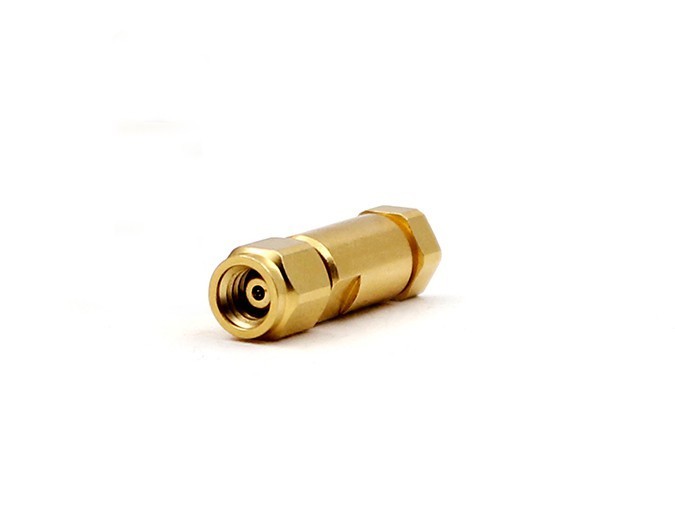

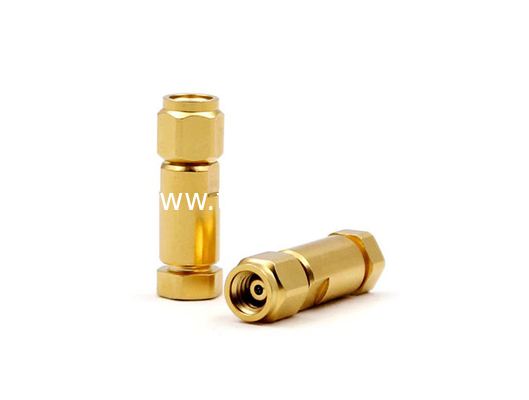

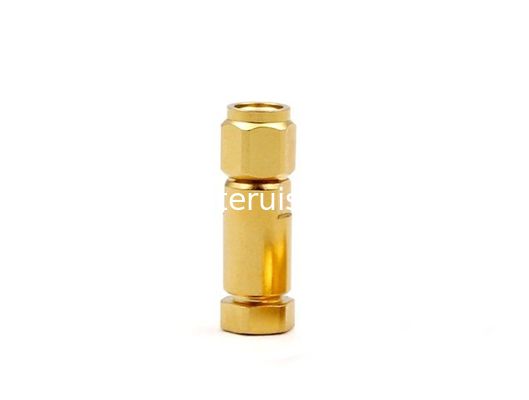

1.0mm Male for 3657 cable RF Connector

1.0mm Male for 3657 cable RF Connector

    • 1.0mm Male for 3657 cable RF Connector
    • 1.0mm Male for 3657 cable RF Connector
    • 1.0mm Male for 3657 cable RF Connector
  • 1.0mm Male for 3657 cable RF Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 1.0-J3657G

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    1.0mm Male for 3657 cable RF Connector

    Series N female flange Micro RF Coaxial Connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.



    Product Details



    1.0mm Male for 3657 cable RF Connector

    Teruilai P/N : 1.0-J3657G

    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range 0-110GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.20

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI
