| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | BNC-JW5Y Datesheet |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
BNC connector is one kind of bayonet coupling mechanism connector up to 4GHZ.. It has two versions, 50Ω and 75Ω .They are intermateable.

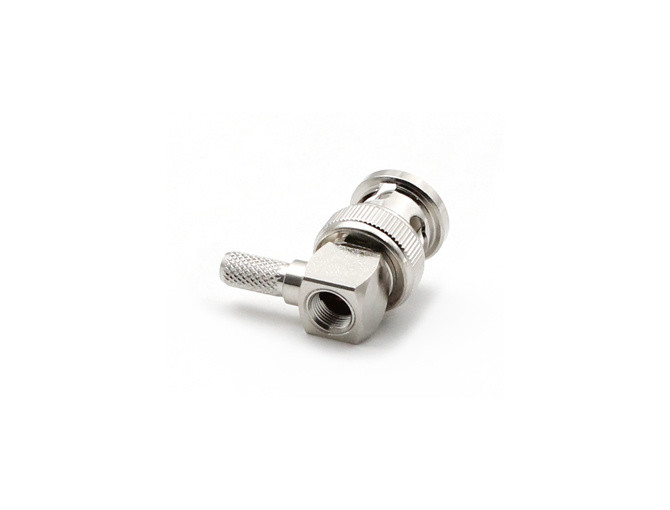

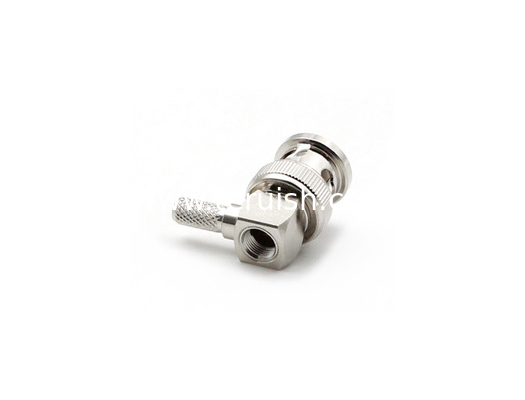

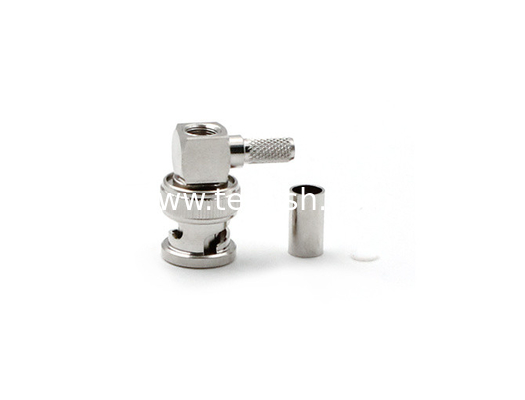

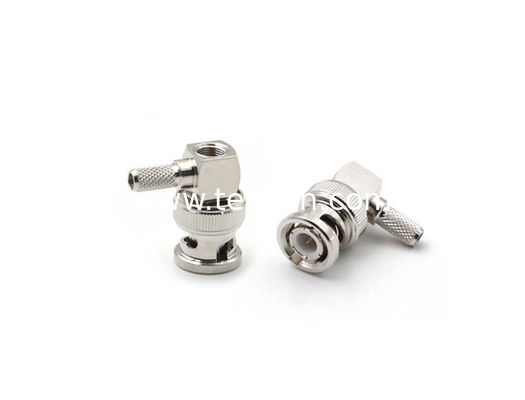

BNC Male Right Angel Connector for RG58/LMR195/LMR200 Cable Crimp
Teruilai P/N:BNC-JW5Y Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Characteristic impedance | 50Ω | |
| Working voltage | ≦500 | |
| Frequency range | 0-4GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Insulation Resistance | ≧5000MΩ | |
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦1mΩ | |
| Environmental&Mechanical data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| RoHs Complaint | ||
| Durability | >500 cycles | |
| Material&Finish data | Requirments | |
| Connector parts | Material | Plating |
| Inner contact | Brass | Gold plated |
| Outer contact | Brass | Nickle plated |
| Insulators | Teflon | |
