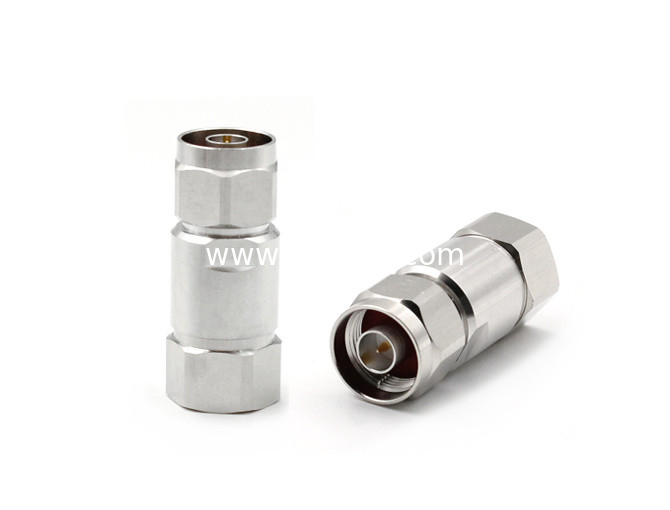

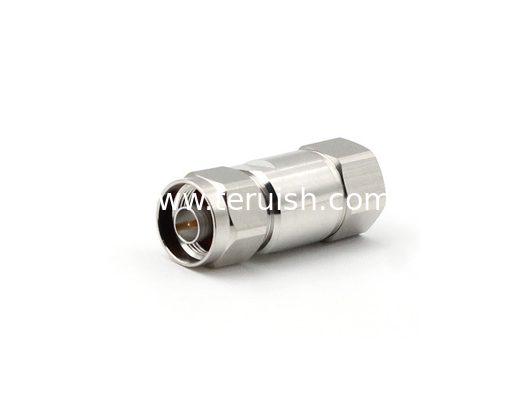

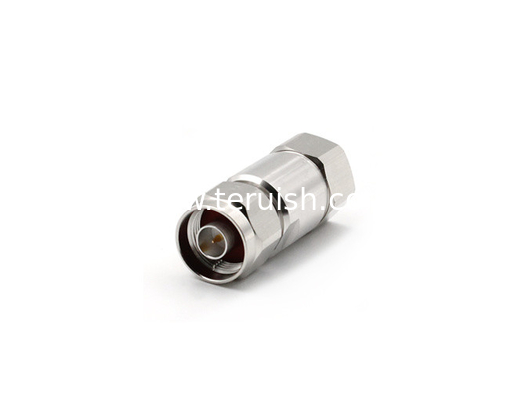

N male straight Connector for 1/2 flexibel Cable

N male straight Connector for 1/2 flexibel Cable

    • N male straight Connector for 1/2 flexibel Cable
    • N male straight Connector for 1/2 flexibel Cable
    • N male straight Connector for 1/2 flexibel Cable
  • N male straight Connector for 1/2 flexibel Cable

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: N-J1/2A Datesheet

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    N male straight Connector for 1/2 flexibel Cable

    TYPE N are very popular screw-coupling middle-power coaxial connectors, which has the excellent peformance of greet vbration-proof,high reliability, superior electrical and mechanical properties, They are widely used for communication applications where tration resistance and harsh environment is required. The interface mating dimensions and technical characterstics are according to the standard MIL-C-39012 IEC60169-16AND CECC22210

    Product Details



    N male straight Connector for 1/2 flexibel Cable

    Teruilai P/N: N-J1/2A Datesheet

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-3GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦1.0mΩ
    .Outer conductor ≦0.2mΩ
    VSWR ≦1.20

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -65℃ ~+165℃

    Material data Requirments
    Connector parts Material Plating
    Pin contacts Bronze Silver plated
    Coupling nut Brass Nickel
    Body Brass Nickel
    Gasket Silicon rubber
    Insulators Teflon
